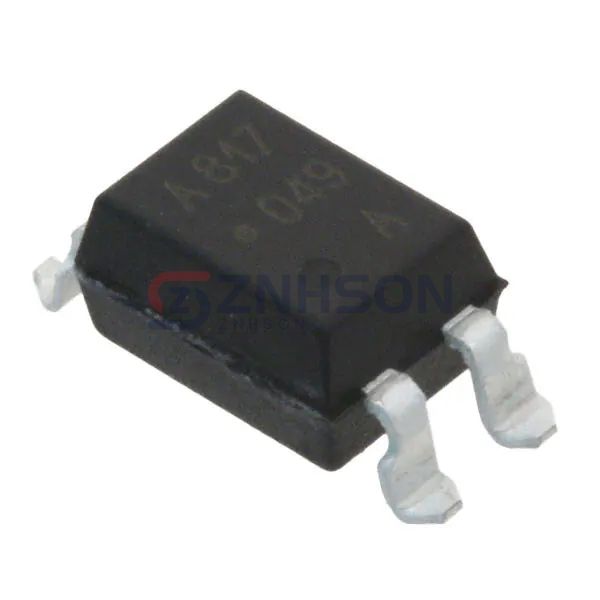

HCPL-817-360E
Broadcom Limited
Broadcom Limited
OPTOISOLATOR 5KV TRANSISTOR 4SMD
$0.16
Available to order
Reference Price (USD)
25,000+
$0.13300
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your project's reliability with HCPL-817-360E Optoisolators by Broadcom Limited, featuring advanced Photovoltaic Output technology. Perfect for use in audio equipment, lighting controls, and instrumentation, these isolators deliver high voltage isolation and low signal distortion. Broadcom Limited guarantees components that meet rigorous industry standards. Don't wait get in touch today for expert advice and competitive pricing!
Specifications
- Product Status: Active
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Current Transfer Ratio (Min): 50% @ 5mA
- Current Transfer Ratio (Max): 600% @ 5mA
- Turn On / Turn Off Time (Typ): -
- Rise / Fall Time (Typ): 4µs, 3µs
- Input Type: DC
- Output Type: Transistor
- Voltage - Output (Max): 70V
- Current - Output / Channel: 50mA
- Voltage - Forward (Vf) (Typ): 1.2V
- Current - DC Forward (If) (Max): 50 mA
- Vce Saturation (Max): 200mV
- Operating Temperature: -30°C ~ 100°C
- Mounting Type: Surface Mount
- Package / Case: 4-SMD, Gull Wing
- Supplier Device Package: 4-SMD
Related Products
Broadcom Limited
5962-0822703HEA
Sharp Microelectronics
PC81103NSZ0F
Fairchild Semiconductor
FOD270L
Everlight Electronics Co Ltd
4N32S1(TA)
onsemi
H11AG1SR2M
Everlight Electronics Co Ltd
EL817(S1)(D)(TU)-V
Vishay Semiconductor Opto Division
VO207AT
Everlight Electronics Co Ltd
EL817(C)-V
TT Electronics/Optek Technology

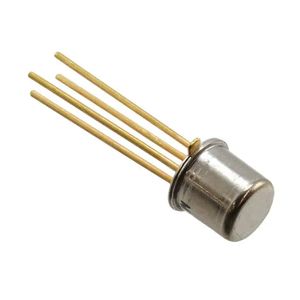

3N263
