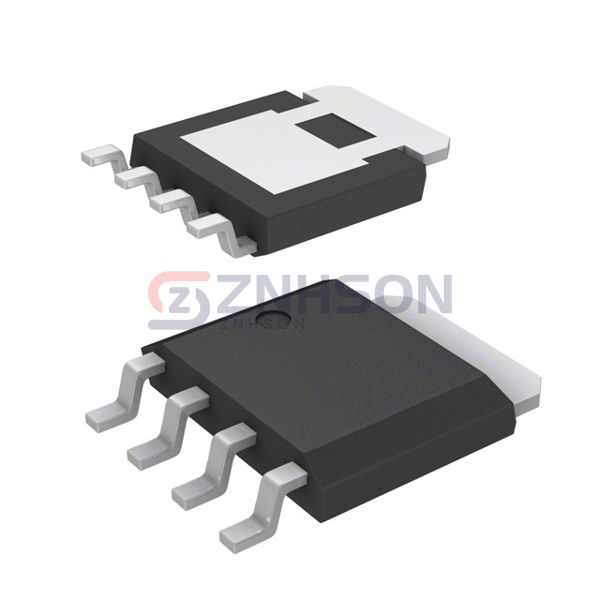

HAT2266H-EL-E
Renesas Electronics America Inc
Renesas Electronics America Inc
MOSFET N-CH 60V 30A LFPAK
$0.00
Available to order
Reference Price (USD)
2,500+
$0.96600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover HAT2266H-EL-E, a versatile Transistors - FETs, MOSFETs - Single solution from Renesas Electronics America Inc, a trusted name in Discrete Semiconductor Products. This MOSFET combines high power density with low on-resistance, perfect for compact and energy-efficient designs. Applications include solar inverters, electric vehicles, and wearable technology. Interested in this innovative component? Send us your inquiry now for more information!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60 V
- Current - Continuous Drain (Id) @ 25°C: 30A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 12mOhm @ 15A, 10V
- Vgs(th) (Max) @ Id: 2.5V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 25 nC @ 4.5 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 3600 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 23W (Tc)
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: LFPAK
- Package / Case: SC-100, SOT-669
