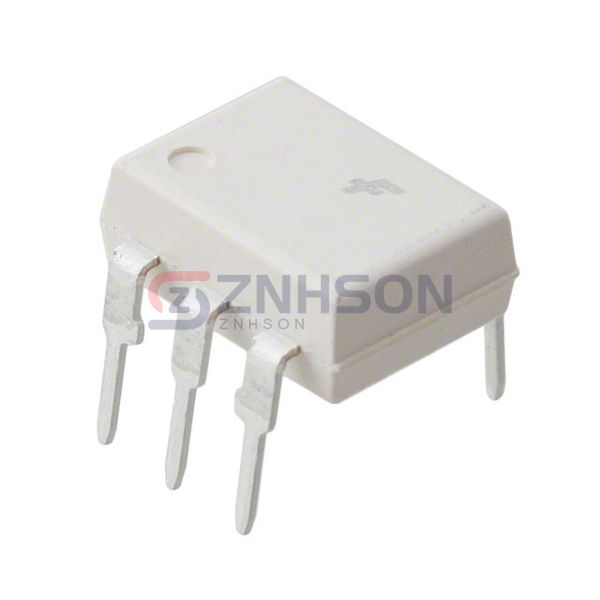

H11L2M
onsemi
onsemi
OPTOISO 4.17KV OPN COLL 6DIP
$1.35
Available to order
Reference Price (USD)
1+
$1.42000
10+
$1.15100
100+
$0.79700
500+
$0.60214
1,000+
$0.49588
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic designs with onsemi H11L2M Optoisolators - Logic Output. These isolators deliver high-speed, reliable signal isolation with low power consumption and excellent thermal stability, ideal for applications in HVAC, lighting controls, and security systems. Trust onsemi for innovative solutions. Send us your requirements today!
Specifications
- Product Status: Active
- Number of Channels: 1
- Inputs - Side 1/Side 2: 1/0
- Voltage - Isolation: 4170Vrms
- Common Mode Transient Immunity (Min): -
- Input Type: DC
- Output Type: Open Collector
- Current - Output / Channel: 50 mA
- Data Rate: 1MHz
- Propagation Delay tpLH / tpHL (Max): 4µs, 4µs
- Rise / Fall Time (Typ): 100ns, 100ns
- Voltage - Forward (Vf) (Typ): 1.2V
- Current - DC Forward (If) (Max): 30mA
- Voltage - Supply: 3V ~ 15V
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Through Hole
- Package / Case: 6-DIP (0.300", 7.62mm)
- Supplier Device Package: 6-DIP
