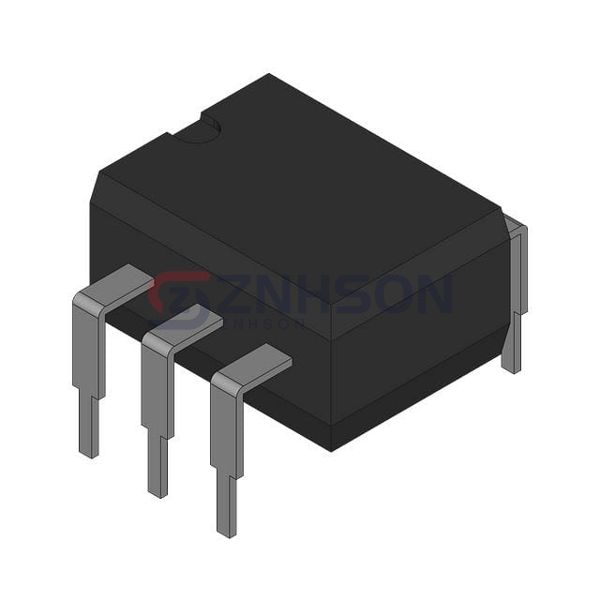

H11AG2
Fairchild Semiconductor
Fairchild Semiconductor
TRANSISTOR OUTPUT OPTOCOUPLER
$0.18
Available to order
Reference Price (USD)
1+
$0.18000
500+
$0.1782
1000+
$0.1764
1500+
$0.1746
2000+
$0.1728
2500+
$0.171
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-quality H11AG2 Optoisolators with Photovoltaic Output from Fairchild Semiconductor, designed for reliable signal isolation in various electronic applications. These optoisolators feature excellent noise immunity, high voltage isolation, and stable performance, making them ideal for industrial automation, medical equipment, and communication systems. Whether you need to protect sensitive circuits or ensure signal integrity, our optoisolators deliver unmatched reliability. Contact us today for a quote and find the perfect solution for your needs!
Specifications
- Product Status: Obsolete
- Number of Channels: 1
- Voltage - Isolation: 5300Vrms
- Current Transfer Ratio (Min): 50% @ 1mA
- Current Transfer Ratio (Max): -
- Turn On / Turn Off Time (Typ): 5µs, 5µs
- Rise / Fall Time (Typ): -
- Input Type: DC
- Output Type: Transistor with Base
- Voltage - Output (Max): 30V
- Current - Output / Channel: 50mA
- Voltage - Forward (Vf) (Typ): 1.5V (Max)
- Current - DC Forward (If) (Max): 50 mA
- Vce Saturation (Max): 400mV
- Operating Temperature: -55°C ~ 100°C
- Mounting Type: Through Hole
- Package / Case: 6-DIP (0.300", 7.62mm)
- Supplier Device Package: 6-DIP
