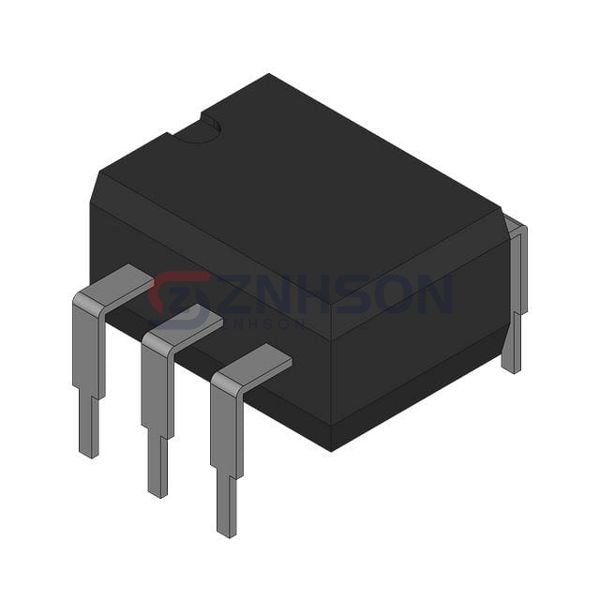

H11A1W
Fairchild Semiconductor
Fairchild Semiconductor
TRANSISTOR OUTPUT OPTOCOUPLER
$0.09
Available to order
Reference Price (USD)
1+
$0.09000
500+
$0.0891
1000+
$0.0882
1500+
$0.0873
2000+
$0.0864
2500+
$0.0855
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance circuit safety with H11A1W Optoisolators from Fairchild Semiconductor, featuring Photovoltaic Output for efficient signal transfer. Ideal for use in renewable energy systems, automotive electronics, and industrial machinery, these isolators provide excellent electrical isolation and noise reduction. Their compact design and high reliability make them a top choice for engineers worldwide. Ready to secure your components? Request a quote today and experience the Fairchild Semiconductor difference!
Specifications
- Product Status: Obsolete
- Number of Channels: 1
- Voltage - Isolation: 5300Vrms
- Current Transfer Ratio (Min): 50% @ 10mA
- Current Transfer Ratio (Max): -
- Turn On / Turn Off Time (Typ): 2µs, 2µs
- Rise / Fall Time (Typ): -
- Input Type: DC
- Output Type: Transistor with Base
- Voltage - Output (Max): 30V
- Current - Output / Channel: -
- Voltage - Forward (Vf) (Typ): 1.18V
- Current - DC Forward (If) (Max): 100 mA
- Vce Saturation (Max): 400mV
- Operating Temperature: -55°C ~ 100°C
- Mounting Type: Through Hole
- Package / Case: 6-DIP (0.400", 10.16mm)
- Supplier Device Package: 6-DIP
