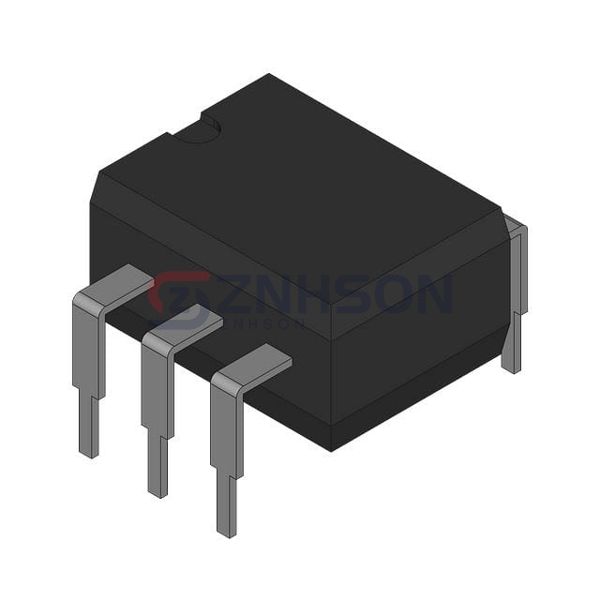

H11A1M
Fairchild Semiconductor
Fairchild Semiconductor
TRANSISTOR OUTPUT OPTOCOUPLER, 7
$0.20
Available to order
Reference Price (USD)
1+
$0.68000
10+
$0.53400
100+
$0.38350
500+
$0.29444
1,000+
$0.22734
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience superior signal isolation with Fairchild Semiconductor's H11A1M Optoisolators - Transistor, Photovoltaic Output. These components are ideal for data acquisition, process control, and safety systems, offering fast response times and high insulation resistance. With Fairchild Semiconductor's commitment to innovation, you can expect cutting-edge solutions for your technical challenges. Reach out now to request a quote and elevate your designs!
Specifications
- Product Status: Active
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Current Transfer Ratio (Min): 50% @ 10mA
- Current Transfer Ratio (Max): -
- Turn On / Turn Off Time (Typ): 3µs, 3µs
- Rise / Fall Time (Typ): -
- Input Type: DC
- Output Type: Transistor with Base
- Voltage - Output (Max): 80V
- Current - Output / Channel: -
- Voltage - Forward (Vf) (Typ): 1.2V
- Current - DC Forward (If) (Max): 60 mA
- Vce Saturation (Max): 400mV
- Operating Temperature: -55°C ~ 110°C
- Mounting Type: Through Hole
- Package / Case: 6-DIP (0.400", 10.16mm)
- Supplier Device Package: 6-DIP
Related Products
Broadcom Limited
HCPL-4534-520E
Isocom Components 2004 LTD
CNY17-2X
Fairchild Semiconductor
MOC205R1M
Toshiba Semiconductor and Storage
TLP183(BLL-TPL,E
Everlight Electronics Co Ltd
H11B3S(TB)
Fairchild Semiconductor
CNY17F3W
Isocom Components 2004 LTD
ICPL2630
Lite-On Inc.

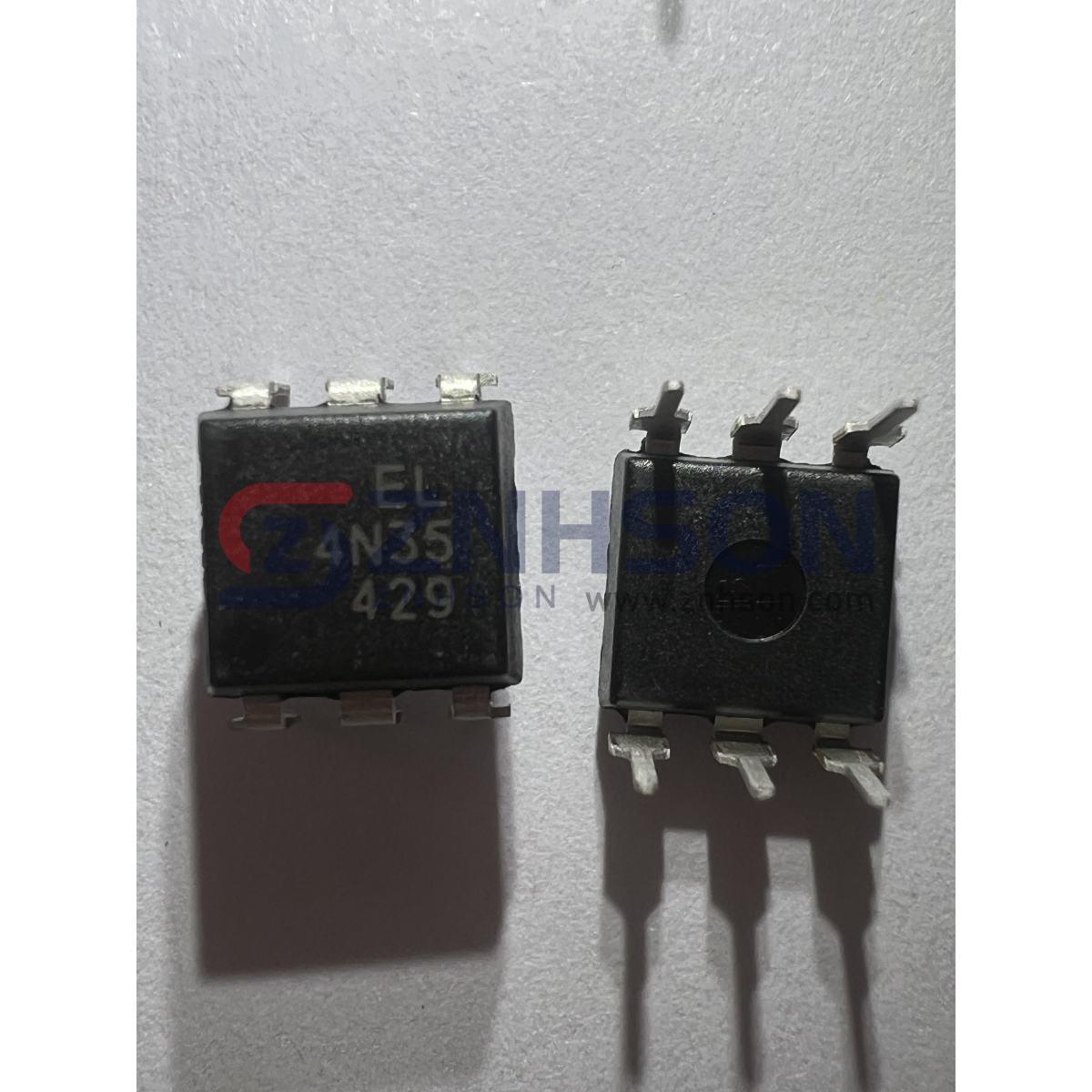

4N35
onsemi

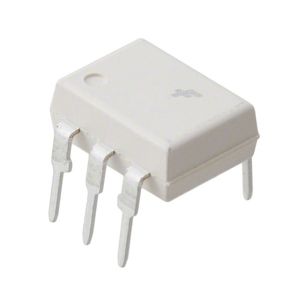

4N32M
