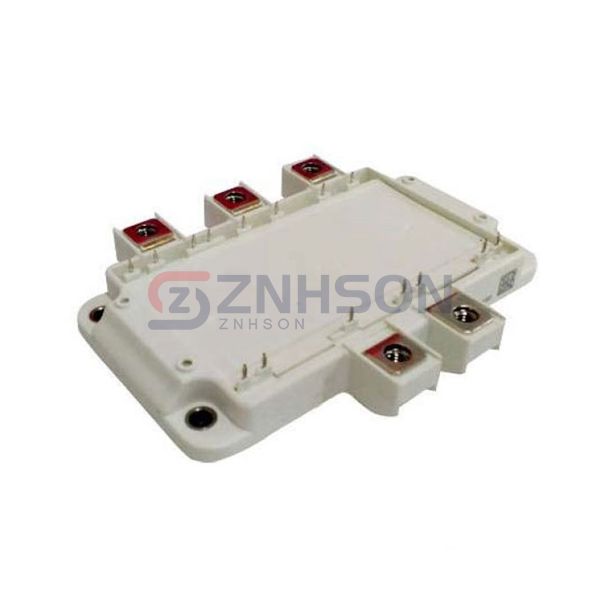

GSID150A120S5C1
SemiQ
SemiQ
IGBT MOD 1200V 285A 1087W
$0.00
Available to order
Reference Price (USD)
4+
$152.86000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
SemiQ's GSID150A120S5C1 IGBT Module is engineered for high-power applications requiring stability and longevity. Key features include integrated temperature monitoring and low EMI emissions, perfect for medical devices and traction systems. Choose quality contact us for technical specifications and lead times.
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Configuration: Three Phase Inverter
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 285 A
- Power - Max: 1087 W
- Vce(on) (Max) @ Vge, Ic: 2.1V @ 15V, 150A
- Current - Collector Cutoff (Max): 1 mA
- Input Capacitance (Cies) @ Vce: 21.2 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: Module
