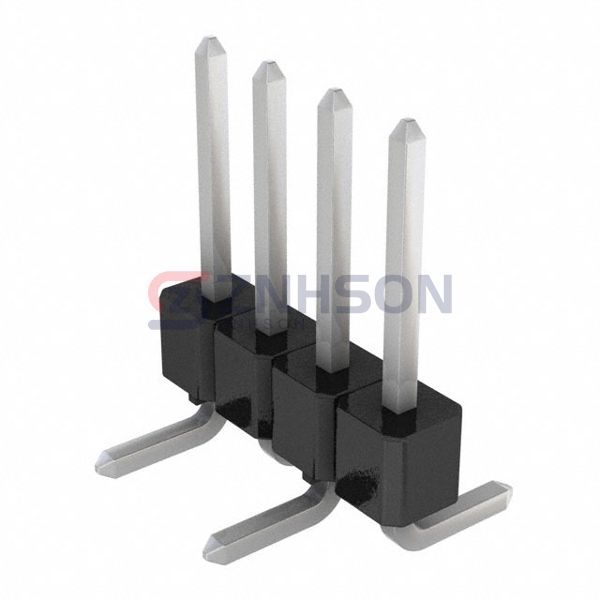

GEC04SFBN-M30
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER SMD 4POS 2.54MM
$1.12
Available to order
Reference Price (USD)
1+
$1.12000
10+
$1.00100
100+
$0.82450
500+
$0.65174
1,000+
$0.55947
5,000+
$0.51039
10,000+
$0.49076
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The GEC04SFBN-M30 Sullins Connector Solutions Rectangular Connectors - Headers, Male Pins offer unmatched reliability for your electronic assembly needs. With features like corrosion resistance, high-temperature tolerance, and easy mating, these connectors are suited for aerospace, medical devices, and more. Trust Sullins Connector Solutions for top-tier connectivity solutions. Interested? Get in touch today for pricing and availability!
Specifications
- Product Status: Discontinued at Digi-Key
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 4
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA9T), Nylon 9T
- Features: -
- Operating Temperature: -65°C ~ 150°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
