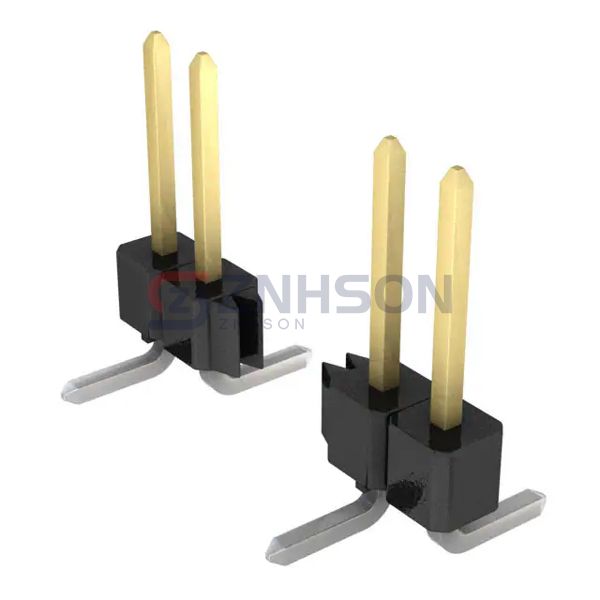

GBC13SFBN-M30
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER SMD 13POS 2.54MM
$1.97
Available to order
Reference Price (USD)
1+
$1.97000
10+
$1.78400
25+
$1.67440
50+
$1.60160
100+
$1.52880
250+
$1.38320
500+
$1.27400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The GBC13SFBN-M30 Sullins Connector Solutions Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 13
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA9T), Nylon 9T
- Features: -
- Operating Temperature: -65°C ~ 150°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
TSW-110-23-T-S
Molex
0022288301
Molex
0717640310
Hirose Electric Co Ltd
A1-10PA-2.54DSA(81)
Samtec Inc.
FTMH-115-03-F-DV-ES-P-TR
Samtec Inc.
TSM-109-02-T-DV-A-P
Sullins Connector Solutions
PEC24DBBN
Samtec Inc.
FTSH-131-04-L-MT-TR

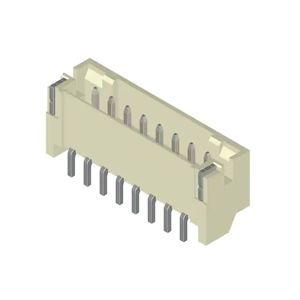

Cvilux USA
