G823J201240BHR

Amphenol ICC (Commercial Products)

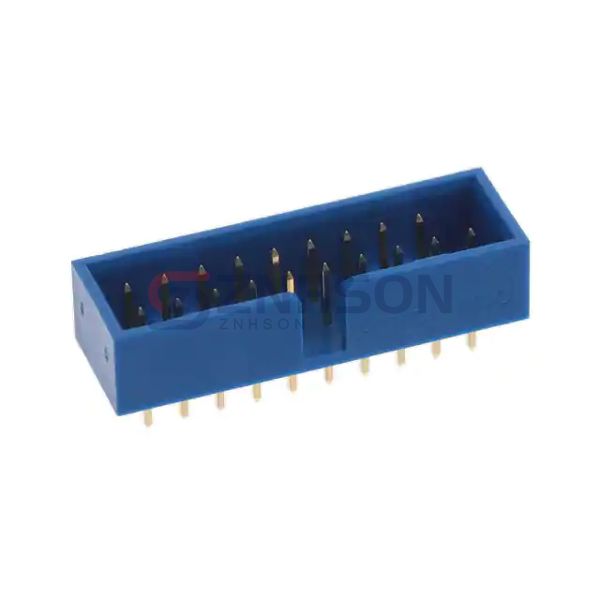

G823J201240BHR Preview
Amphenol ICC (Commercial Products)
BOX HEADER FOR USB 3.0,2.0MM PIT
$2.53
Available to order
Reference Price (USD)
1+
$2.53000
500+
$2.5047
1000+
$2.4794
1500+
$2.4541
2000+
$2.4288
2500+
$2.4035
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

Specifications

  • Product Status: Active
  • Connector Type: Header
  • Contact Type: Male Pin
  • Pitch - Mating: 0.079" (2.00mm)
  • Number of Positions: 19
  • Number of Rows: 2
  • Row Spacing - Mating: 0.079" (2.00mm)
  • Number of Positions Loaded: All
  • Style: Board to Cable/Wire
  • Shrouding: Shrouded - 4 Wall
  • Mounting Type: Through Hole
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Contact Length - Mating: 0.157" (4.00mm)
  • Contact Length - Post: 0.098" (2.50mm)
  • Overall Contact Length: -
  • Insulation Height: 0.197" (5.00mm)
  • Contact Shape: Square
  • Contact Finish - Mating: Gold
  • Contact Finish Thickness - Mating: 15.0µin (0.38µm)
  • Contact Finish - Post: Gold
  • Contact Material: Copper Alloy
  • Insulation Material: Polyamide (PA9T), Nylon 9T
  • Features: Keying Slot
  • Operating Temperature: -25°C ~ 85°C
  • Ingress Protection: -
  • Material Flammability Rating: UL94 V-0
  • Insulation Color: Blue
  • Current Rating (Amps): 1.5A
  • Voltage Rating: 250VDC
