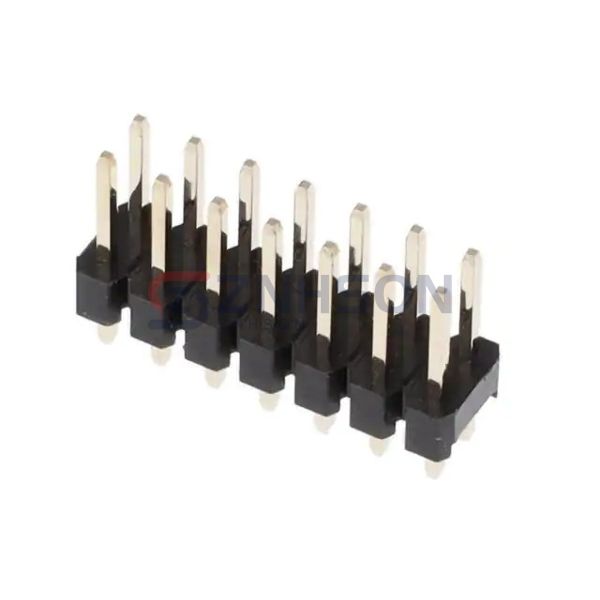

G800LW589018EU
Amphenol ICC (Commercial Products)
Amphenol ICC (Commercial Products)
PIN HEADER 2.54MM PITCH STR DIP,
$0.36
Available to order
Reference Price (USD)
1+
$0.36000
500+
$0.3564
1000+
$0.3528
1500+
$0.3492
2000+
$0.3456
2500+
$0.342
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The G800LW589018EU Amphenol ICC (Commercial Products) Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 14
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.085" (2.16mm)
- Overall Contact Length: 0.415" (10.54mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA6T), Nylon 6T
- Features: -
- Operating Temperature: -25°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: 250VDC
