G125-MH11005L1P

Harwin Inc.

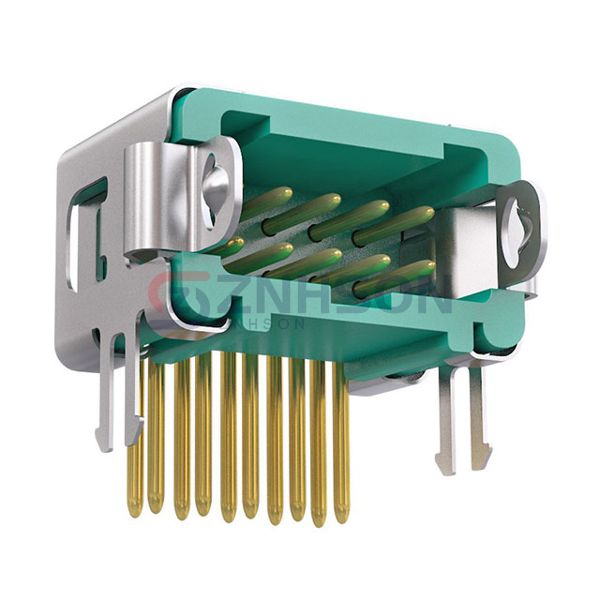

G125-MH11005L1P Preview
Harwin Inc.
CONN HEADER R/A 10POS 1.25MM
$10.00
Available to order
Reference Price (USD)
1+
$8.19000
10+
$7.85200
100+
$6.48660
500+
$5.46240
1,000+
$4.77960
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

Specifications

  • Product Status: Active
  • Connector Type: Header
  • Contact Type: Male Pin
  • Pitch - Mating: 0.049" (1.25mm)
  • Number of Positions: 10
  • Number of Rows: 2
  • Row Spacing - Mating: 0.049" (1.25mm)
  • Number of Positions Loaded: All
  • Style: Board to Board or Cable
  • Shrouding: Shrouded - 4 Wall
  • Mounting Type: Through Hole, Right Angle
  • Termination: Solder
  • Fastening Type: Latch Lock
  • Contact Length - Mating: -
  • Contact Length - Post: 0.130" (3.30mm)
  • Overall Contact Length: -
  • Insulation Height: 0.219" (5.56mm)
  • Contact Shape: Circular
  • Contact Finish - Mating: Gold
  • Contact Finish Thickness - Mating: 8.00µin (0.203µm)
  • Contact Finish - Post: -
  • Contact Material: Phosphor Bronze
  • Insulation Material: Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
  • Features: Board Lock
  • Operating Temperature: -65°C ~ 150°C
  • Ingress Protection: -
  • Material Flammability Rating: UL94 V-0
  • Insulation Color: Green
  • Current Rating (Amps): 2A
  • Voltage Rating: 250V
