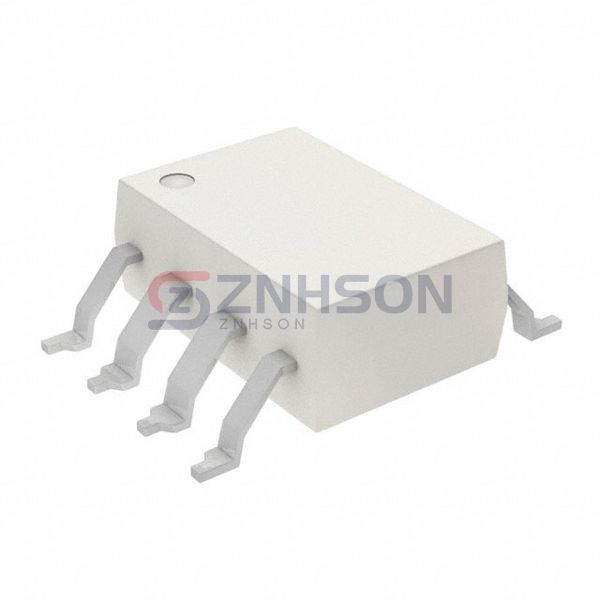

FOD3120TSV
Fairchild Semiconductor
Fairchild Semiconductor
FET OUTPUT OPTOCOUPLER
$0.00
Available to order
Reference Price (USD)
1,000+
$1.14950
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Fairchild Semiconductor FOD3120TSV Gate Driver Isolators set the standard for secure signal transmission in high-voltage applications. Key benefits include galvanic isolation, low EMI emissions, and compatibility with industry standards. Widely used in welding equipment, HVAC systems, and data centers, these isolators ensure operational excellence. Contact our team for details and samples!
Specifications
- Product Status: Active
- Technology: Optical Coupling
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Common Mode Transient Immunity (Min): 35kV/µs
- Propagation Delay tpLH / tpHL (Max): 400ns, 400ns
- Pulse Width Distortion (Max): 100ns
- Rise / Fall Time (Typ): 60ns, 60ns
- Current - Output High, Low: 2A, 2A
- Current - Peak Output: 3A
- Voltage - Forward (Vf) (Typ): 1.5V
- Current - DC Forward (If) (Max): 25 mA
- Voltage - Output Supply: 15V ~ 30V
- Operating Temperature: -40°C ~ 100°C
- Mounting Type: Surface Mount
- Package / Case: 8-SMD, Gull Wing
- Supplier Device Package: 8-SMD
- Approval Agency: IEC, UL
