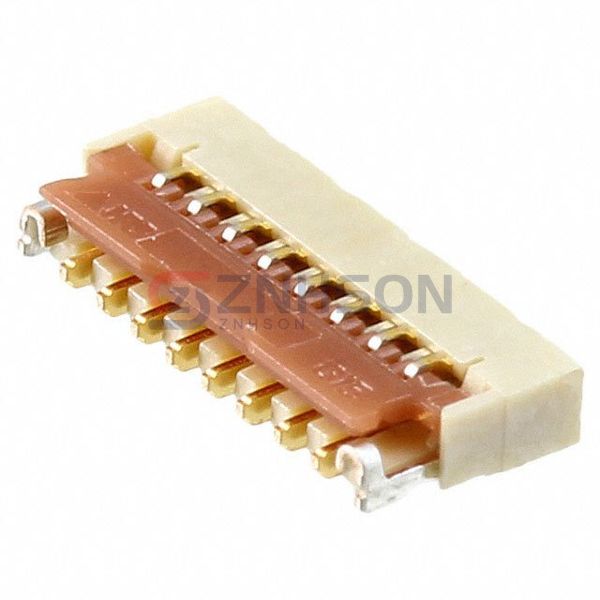

FH36W-15S-0.3SHW(99)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN FPC BOTTOM 15POS 0.30MM R/A
$2.95
Available to order
Reference Price (USD)
500+
$1.73400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your electronic projects with Hirose Electric Co Ltd's FH36W-15S-0.3SHW(99) FFC/FPC Connectors, known for their durability and high-speed performance. These connectors feature low insertion force and excellent EMI protection, making them suitable for a variety of applications. From home appliances to industrial machinery, they deliver consistent results. Get a quote now!
Specifications
- Product Status: Active
- Flat Flex Type: FPC
- Mounting Type: Surface Mount, Right Angle
- Connector/Contact Type: Contacts, Bottom
- Number of Positions: 15
- Pitch: 0.012" (0.30mm)
- Termination: Solder
- FFC, FCB Thickness: 0.20mm
- Height Above Board: 0.039" (1.00mm)
- Locking Feature: Flip Lock
- Cable End Type: Tabbed
- Contact Material: Phosphor Bronze
- Contact Finish: Gold
- Housing Material: Liquid Crystal Polymer (LCP), Halogen Free
- Actuator Material: Polyamide (PA), Nylon
- Features: Zero Insertion Force (ZIF)
- Voltage Rating: 30V
- Operating Temperature: -55°C ~ 85°C
- Material Flammability Rating: UL94 HB
