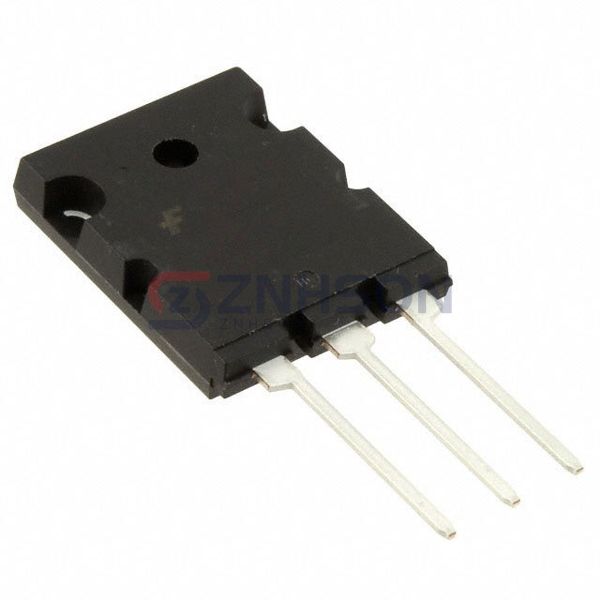

FGL12040WD
onsemi
onsemi
IGBT TRENCH/FS 1200V 80A TO264-3
$0.00
Available to order
Reference Price (USD)
1+
$8.21000
10+
$7.41600
375+
$5.86373
750+
$5.34633
1,125+
$4.65649
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FGL12040WD Single IGBT by onsemi sets the standard for power semiconductor excellence. Designed for applications like electric vehicles and industrial machinery, it offers high current density and minimal thermal resistance. Key benefits include easy integration, superior durability, and compliance with international certifications. Partner with onsemi for cutting-edge solutions tailored to your needs. Contact us now to discuss specifications and delivery options!
Specifications
- Product Status: Obsolete
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 80 A
- Current - Collector Pulsed (Icm): 100 A
- Vce(on) (Max) @ Vge, Ic: 2.9V @ 15V, 40A
- Power - Max: 391 W
- Switching Energy: 4.1mJ (on), 1mJ (off)
- Input Type: Standard
- Gate Charge: 226 nC
- Td (on/off) @ 25°C: 45ns/560ns
- Test Condition: 600V, 40A, 23Ohm, 15V
- Reverse Recovery Time (trr): 71 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-264-3, TO-264AA
- Supplier Device Package: TO-264-3
