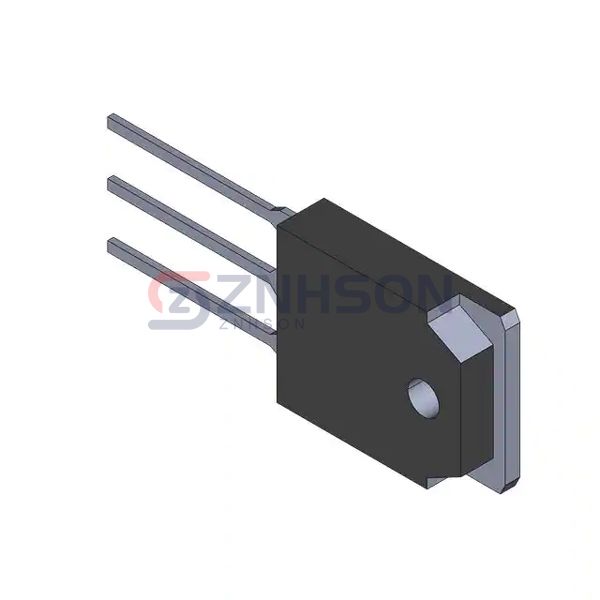

FGA30T65SHD
Fairchild Semiconductor
Fairchild Semiconductor
INSULATED GATE BIPOLAR TRANSISTO
$0.00
Available to order
Reference Price (USD)
450+
$2.80484
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FGA30T65SHD Single IGBT by Fairchild Semiconductor sets the standard for power semiconductor excellence. Designed for applications like electric vehicles and industrial machinery, it offers high current density and minimal thermal resistance. Key benefits include easy integration, superior durability, and compliance with international certifications. Partner with Fairchild Semiconductor for cutting-edge solutions tailored to your needs. Contact us now to discuss specifications and delivery options!
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 650 V
- Current - Collector (Ic) (Max): 60 A
- Current - Collector Pulsed (Icm): 90 A
- Vce(on) (Max) @ Vge, Ic: 2.1V @ 15V, 30A
- Power - Max: 238 W
- Switching Energy: 598µJ (on), 167µJ (off)
- Input Type: Standard
- Gate Charge: 54.7 nC
- Td (on/off) @ 25°C: 14.4ns/52.8ns
- Test Condition: 400V, 30A, 6Ohm, 15V
- Reverse Recovery Time (trr): 31.8 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-3P-3, SC-65-3
- Supplier Device Package: TO-3PN
