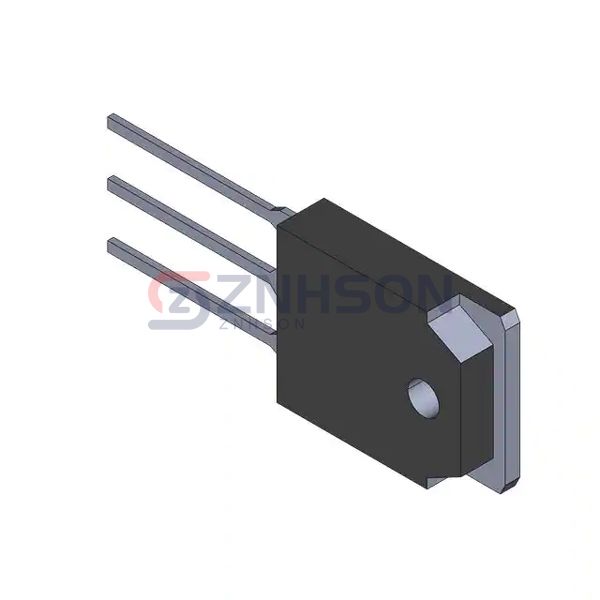

FGA15N120ANTDTU
Fairchild Semiconductor
Fairchild Semiconductor
IGBT, 30A, 1200V, N-CHANNEL
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FGA15N120ANTDTU Single IGBT from Fairchild Semiconductor delivers unmatched performance in power conversion and control. Ideal for UPS systems, induction heating, and industrial automation, this transistor combines high efficiency with rugged reliability. Features such as short-circuit protection and low EMI make it a standout choice. Fairchild Semiconductor's commitment to innovation ensures FGA15N120ANTDTU meets the demands of modern electronics. Get in touch for bulk orders and customization options!
Specifications
- Product Status: Obsolete
- IGBT Type: NPT and Trench
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 30 A
- Current - Collector Pulsed (Icm): 45 A
- Vce(on) (Max) @ Vge, Ic: 2.4V @ 15V, 15A
- Power - Max: 186 W
- Switching Energy: 3mJ (on), 600µJ (off)
- Input Type: Standard
- Gate Charge: 120 nC
- Td (on/off) @ 25°C: 15ns/160ns
- Test Condition: 600V, 15A, 10Ohm, 15V
- Reverse Recovery Time (trr): 330 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-3P-3, SC-65-3
- Supplier Device Package: TO-3P
