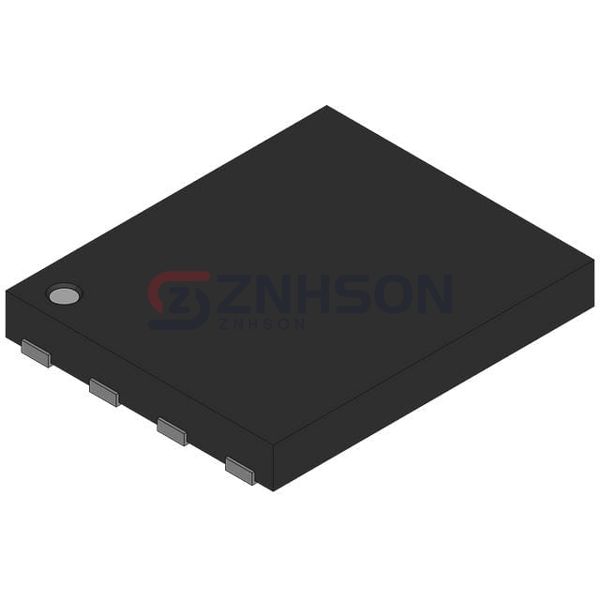

FDMS8560S
Fairchild Semiconductor
Fairchild Semiconductor
35A, 25V, 0.0018OHM, N-CHANNEL,
$0.62
Available to order
Reference Price (USD)
3,000+
$0.68761
6,000+
$0.65323
15,000+
$0.62867
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your electronic applications with FDMS8560S, a reliable Transistors - FETs, MOSFETs - Single by Fairchild Semiconductor. As a leader in Discrete Semiconductor Products, we offer components with low gate charge, high breakdown voltage, and excellent switching performance. Whether for aerospace, robotics, or energy systems, FDMS8560S meets the highest standards. Contact our team today for expert advice and competitive pricing!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 25 V
- Current - Continuous Drain (Id) @ 25°C: 30A (Ta), 70A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 1.8mOhm @ 30A, 10V
- Vgs(th) (Max) @ Id: 2.2V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 68 nC @ 10 V
- Vgs (Max): ±12V
- Input Capacitance (Ciss) (Max) @ Vds: 4350 pF @ 13 V
- FET Feature: -
- Power Dissipation (Max): 2.5W (Ta), 65W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-PQFN (5x6)
- Package / Case: 8-PowerTDFN
