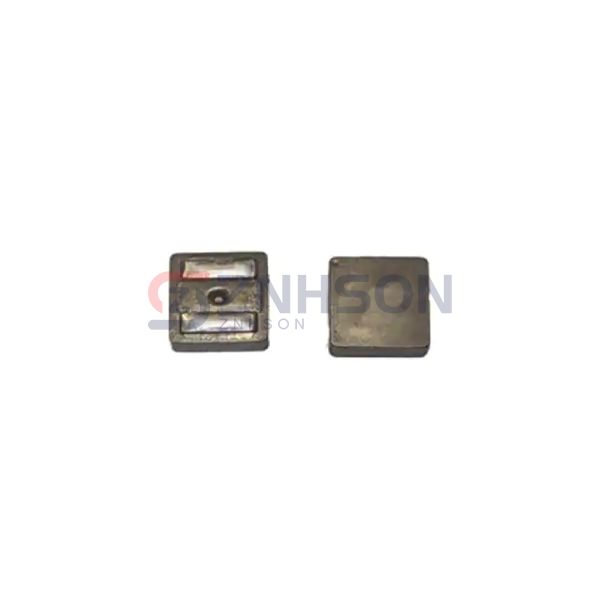

EXL1V0603-R56-R
Eaton - Electronics Division
Eaton - Electronics Division
FIXED IND 560NH 22A 3.31MOHM SMD
$0.49
Available to order
Reference Price (USD)
1+
$0.48720
500+
$0.482328
1000+
$0.477456
1500+
$0.472584
2000+
$0.467712
2500+
$0.46284
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your circuit efficiency with EXL1V0603-R56-R Fixed Inductors from Eaton - Electronics Division, a trusted name in electronic components. Designed with high-frequency capabilities, minimal eddy current losses, and excellent shielding, these inductors are perfect for wireless charging, LED lighting, and automation systems. EXL1V0603-R56-R ensures peak performance. Looking for tailored solutions? Contact us for expert advice!
Specifications
- Product Status: Active
- Type: Molded
- Material - Core: Iron Powder
- Inductance: 560 nH
- Tolerance: ±20%
- Current Rating (Amps): 22 A
- Current - Saturation (Isat): 25A
- Shielding: Shielded
- DC Resistance (DCR): 3.31mOhm Max
- Q @ Freq: -
- Frequency - Self Resonant: 70MHz
- Ratings: -
- Operating Temperature: -40°C ~ 125°C
- Inductance Frequency - Test: 100 kHz
- Features: -
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Supplier Device Package: -
- Size / Dimension: 0.283" L x 0.272" W (7.20mm x 6.90mm)
- Height - Seated (Max): 0.118" (3.00mm)
Related Products
Vishay Dale
ISC1210EB680J
Chilisin Electronics
BWCS0023171543NJ00
Chilisin Electronics
BPSC00131345101M00
Central Technologies
CTSR0604F-470K
Chilisin Electronics
BWLS002417153R9J00
Murata Electronics
LQW15AN9N3J80D
Chilisin Electronics
APSC000505301R8TS0
EPCOS - TDK Electronics
B82473M1474K000
Central Technologies

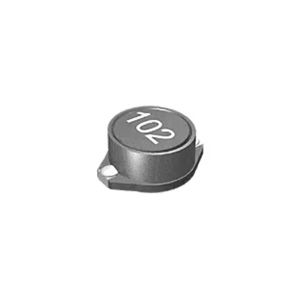

CTDSS0805F-181K
