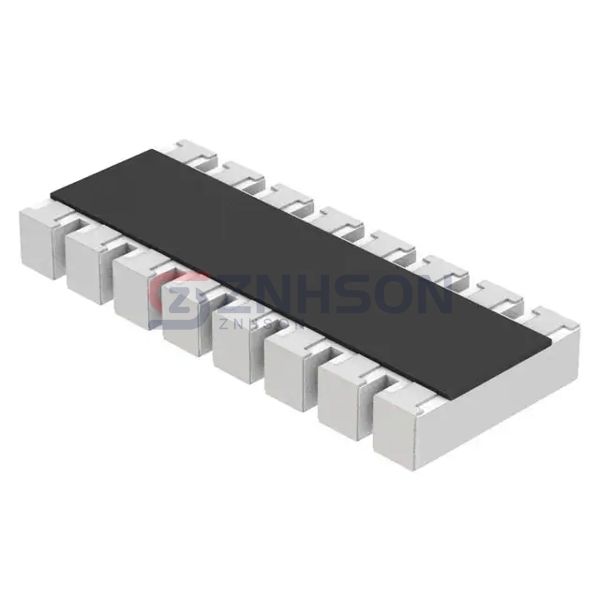

EXB-Q16P224J
Panasonic Electronic Components
Panasonic Electronic Components
RES ARRAY 15 RES 220K OHM 1506
$1.00
Available to order
Reference Price (USD)
5,000+
$0.18447
10,000+
$0.17809
25,000+
$0.17383
50,000+
$0.17283
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Solve complex impedance matching challenges with Panasonic Electronic Components's EXB-Q16P224J resistor arrays. These networks provide: Matched parasitics (<0.5pF) 50 /75 RF options Custom termination schemes. Essential for high-speed digital systems (DDR5 memory, 400GbE PHY) and 5G mmWave beamforming. Every EXB-Q16P224J unit ships with a compliance certificate including 3D resistance mapping data. Visit our product page to download IBIS models or schedule a video consultation.
Specifications
- Product Status: Active
- Circuit Type: Bussed
- Resistance (Ohms): 220k
- Tolerance: ±5%
- Number of Resistors: 15
- Resistor Matching Ratio: -
- Resistor-Ratio-Drift: -
- Number of Pins: 16
- Power Per Element: 25mW
- Temperature Coefficient: ±200ppm/°C
- Operating Temperature: -55°C ~ 125°C
- Applications: -
- Mounting Type: Surface Mount
- Package / Case: 1506, Convex, Long Side Terminals
- Supplier Device Package: 1506
- Size / Dimension: 0.150" L x 0.063" W (3.80mm x 1.60mm)
- Height - Seated (Max): 0.022" (0.55mm)
