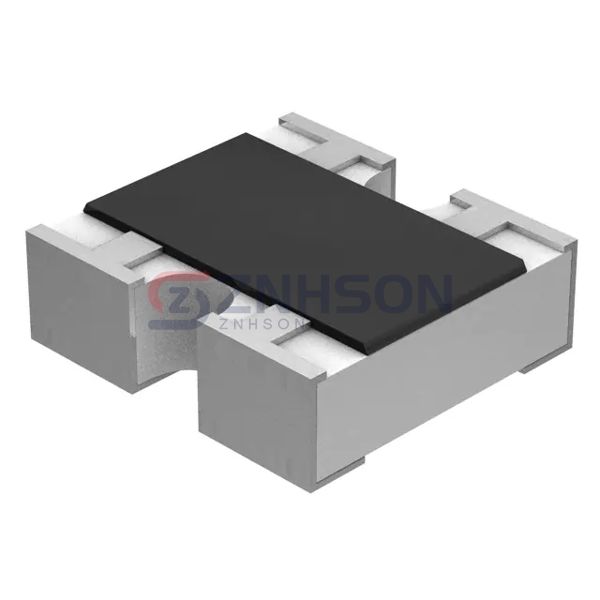

EXB-14V820JX
Panasonic Electronic Components
Panasonic Electronic Components
RES ARRAY 2 RES 82 OHM 0302
$0.49
Available to order
Reference Price (USD)
10,000+
$0.04978
30,000+
$0.04769
50,000+
$0.04667
100,000+
$0.04575
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Solve complex impedance matching challenges with Panasonic Electronic Components's EXB-14V820JX resistor arrays. These networks provide: Matched parasitics (<0.5pF) 50 /75 RF options Custom termination schemes. Essential for high-speed digital systems (DDR5 memory, 400GbE PHY) and 5G mmWave beamforming. Every EXB-14V820JX unit ships with a compliance certificate including 3D resistance mapping data. Visit our product page to download IBIS models or schedule a video consultation.
Specifications
- Product Status: Active
- Circuit Type: Isolated
- Resistance (Ohms): 82
- Tolerance: ±5%
- Number of Resistors: 2
- Resistor Matching Ratio: -
- Resistor-Ratio-Drift: -
- Number of Pins: 4
- Power Per Element: 31mW
- Temperature Coefficient: ±200ppm/°C
- Operating Temperature: -55°C ~ 125°C
- Applications: -
- Mounting Type: Surface Mount
- Package / Case: 0302 (0805 Metric), Convex, Long Side Terminals
- Supplier Device Package: 0302
- Size / Dimension: 0.031" L x 0.024" W (0.80mm x 0.60mm)
- Height - Seated (Max): 0.018" (0.45mm)
