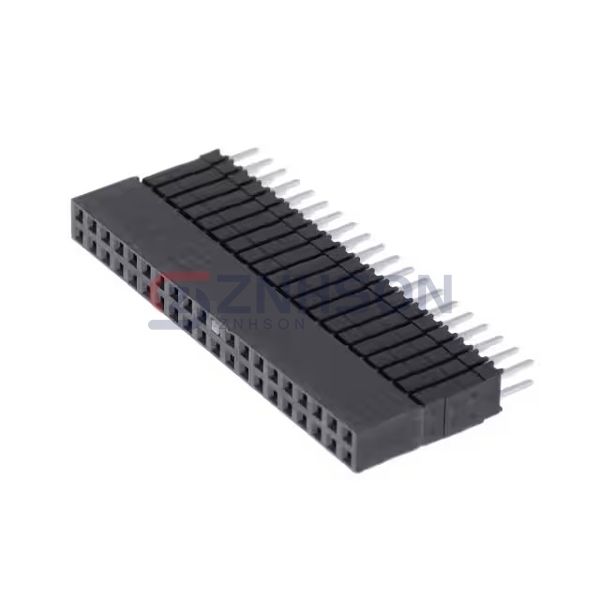

ESQ-120-69-S-D-020
Samtec Inc.
Samtec Inc.
CONN SOCKET 40POS 0.1 GOLD PCB
$18.30
Available to order
Reference Price (USD)
1+
$8.53000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ESQ-120-69-S-D-020 Samtec Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets offer exceptional durability and performance. With features like corrosion resistance and high-speed data transmission, they are suited for automotive, aerospace, and telecom applications. Ensure stable connections in any setting. Get in touch today to learn more and place your order!
Specifications
- Product Status: Active
- Connector Type: Elevated Socket
- Contact Type: Forked
- Style: Board to Board
- Number of Positions: 40
- Number of Positions Loaded: 39
- Pitch - Mating: 0.100" (2.54mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Insulation Color: Black
- Insulation Height: 0.735" (18.67mm)
- Contact Length - Post: 0.180" (4.57mm)
- Operating Temperature: -55°C ~ 125°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: -
- Current Rating (Amps): 5.7A per Contact
- Voltage Rating: 550VAC
Related Products
Samtec Inc.
HLE-124-02-G-DV-PE-LC
Preci-Dip
803-87-012-10-132101
Samtec Inc.
CLM-123-02-F-D-PA
Mill-Max Manufacturing Corp.
315-47-158-41-003000
Preci-Dip
316-83-114-41-012101
Samtec Inc.
SLW-130-01-F-D
Mill-Max Manufacturing Corp.
853-99-058-10-001000
Sullins Connector Solutions

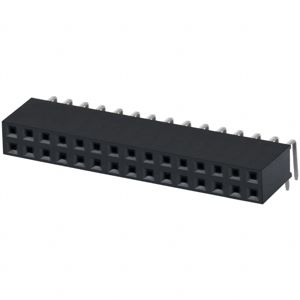

PPTC152LJBN-RC
Preci-Dip

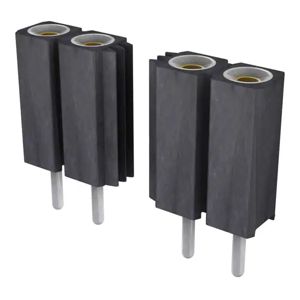

801-87-023-10-005101
