EL814M
Everlight Electronics Co Ltd
Everlight Electronics Co Ltd
OPTOISOLTR 5KV TRANSISTOR 4-DIP
$0.14
Available to order
Reference Price (USD)
1,000+
$0.13158
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance circuit safety with EL814M Optoisolators from Everlight Electronics Co Ltd, featuring Photovoltaic Output for efficient signal transfer. Ideal for use in renewable energy systems, automotive electronics, and industrial machinery, these isolators provide excellent electrical isolation and noise reduction. Their compact design and high reliability make them a top choice for engineers worldwide. Ready to secure your components? Request a quote today and experience the Everlight Electronics Co Ltd difference!
Specifications
- Product Status: Active
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Current Transfer Ratio (Min): 20% @ 1mA
- Current Transfer Ratio (Max): 300% @ 1mA
- Turn On / Turn Off Time (Typ): -
- Rise / Fall Time (Typ): 7µs, 11µs
- Input Type: AC, DC
- Output Type: Transistor
- Voltage - Output (Max): 80V
- Current - Output / Channel: -
- Voltage - Forward (Vf) (Typ): 1.2V
- Current - DC Forward (If) (Max): 60 mA
- Vce Saturation (Max): 200mV
- Operating Temperature: -55°C ~ 110°C
- Mounting Type: Through Hole
- Package / Case: 4-DIP (0.400", 10.16mm)
- Supplier Device Package: 4-DIP
Related Products
Texas Instruments
TIL195B
Everlight Electronics Co Ltd
H11A1S1(TA)
Everlight Electronics Co Ltd
H11A5S(TB)
Renesas Electronics America Inc

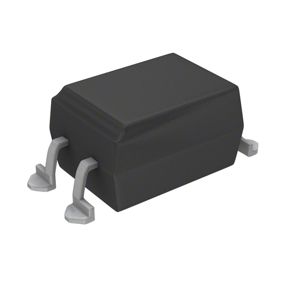

PS2561DL-1Y-V-F3-A
Toshiba Semiconductor and Storage
TLP291-4(TP,E)
Everlight Electronics Co Ltd
4N30S1(TB)-V
Everlight Electronics Co Ltd
EL211(TB)
Vishay Semiconductor Opto Division

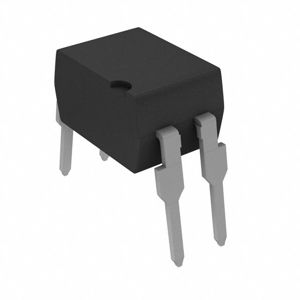

TCET1600
