EHF-113-01-SM-D
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 26POS 1.27MM
$10.59
Available to order
Reference Price (USD)
1+
$7.44000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The EHF-113-01-SM-D Samtec Inc. Rectangular Connectors - Headers, Male Pins are the perfect choice for high-performance electronic connections. Designed for durability and efficiency, they support a wide range of applications, from automotive to IoT devices. Experience the Samtec Inc. difference today. Contact us for more details and a customized solution!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 26
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks
- Contact Length - Mating: 0.120" (3.05mm)
- Contact Length - Post: 0.107" (2.71mm)
- Overall Contact Length: 0.350" (8.89mm)
- Insulation Height: 0.325" (8.25mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): 1.75A
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
1-292206-4
Molex
0022284028
Mill-Max Manufacturing Corp.
852-10-036-10-001000
JST Sales America Inc.
B6B-PH-K-S(LF)(SN)
Molex
0533980567
Samtec Inc.
ZSS-112-04-L-D-840
Hirose Electric Co Ltd

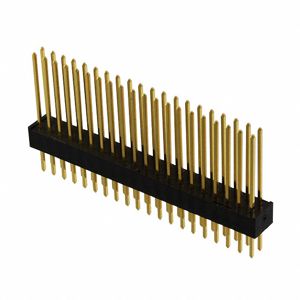

HIF3H-40P-2.54W
Sullins Connector Solutions

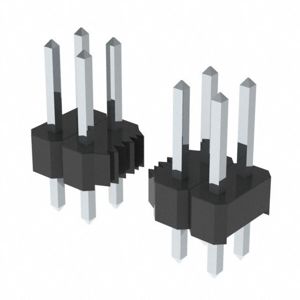

PREC029DAAN-RC
Amphenol ICC (FCI)

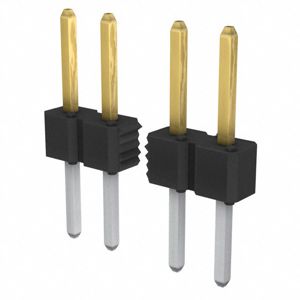

77311-103-08LF
