EHF-105-01-L-D-SM-K-TR

Samtec Inc.

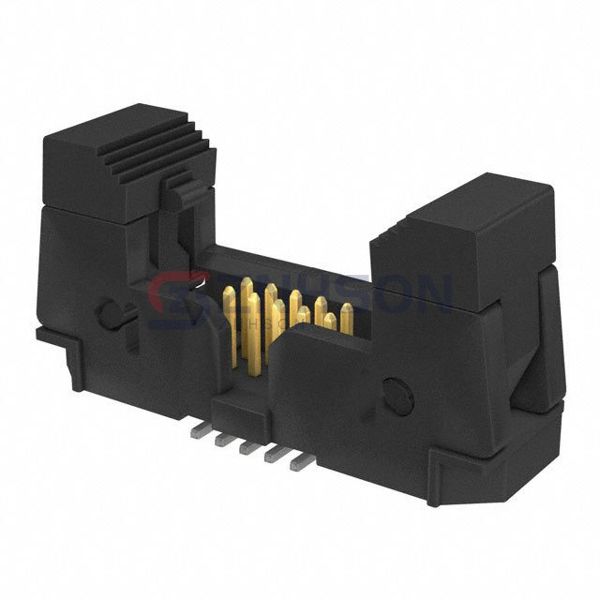

EHF-105-01-L-D-SM-K-TR Preview
Samtec Inc.
CONN HEADER SMD 10POS 1.27MM
EHF-105-01-L-D-SM-K-TR Datasheet
$6.55
Available to order
Reference Price (USD)
150+
$3.56000
300+
$3.11500
750+
$2.75900
1,050+
$2.58100
1,500+
$2.49200
3,750+
$2.40300
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

Specifications

  • Product Status: Active
  • Connector Type: Header
  • Contact Type: Male Pin
  • Pitch - Mating: 0.050" (1.27mm)
  • Number of Positions: 10
  • Number of Rows: 2
  • Row Spacing - Mating: 0.050" (1.27mm)
  • Number of Positions Loaded: All
  • Style: Board to Cable/Wire
  • Shrouding: Shrouded - 4 Wall
  • Mounting Type: Surface Mount
  • Termination: Solder
  • Fastening Type: Latch Lock/Eject Hooks
  • Contact Length - Mating: 0.120" (3.05mm)
  • Contact Length - Post: -
  • Overall Contact Length: -
  • Insulation Height: 0.325" (8.25mm)
  • Contact Shape: Square
  • Contact Finish - Mating: Gold
  • Contact Finish Thickness - Mating: 10.0µin (0.25µm)
  • Contact Finish - Post: Tin
  • Contact Material: Phosphor Bronze
  • Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
  • Features: Keying Slot, Pick and Place
  • Operating Temperature: -55°C ~ 125°C
  • Ingress Protection: -
  • Material Flammability Rating: -
  • Insulation Color: Black
  • Current Rating (Amps): 1.75A
  • Voltage Rating: -
