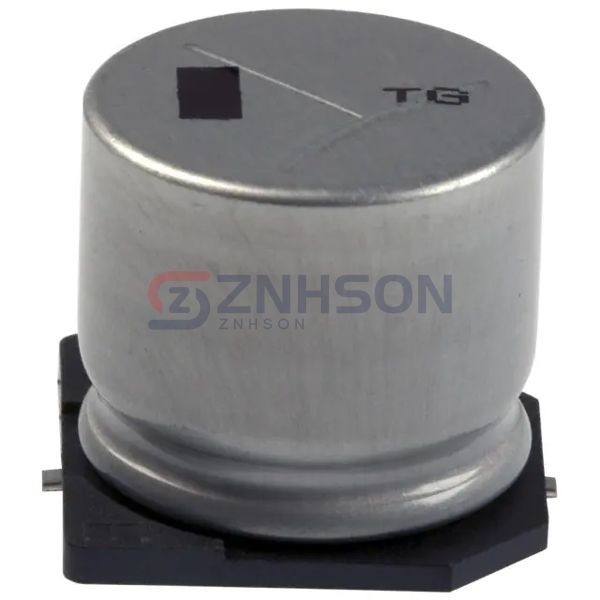

EEV-TG1H102M
Panasonic Electronic Components
Panasonic Electronic Components
CAP ALUM 1000UF 20% 50V SMD
$3.49
Available to order
Reference Price (USD)
125+
$1.59856
250+
$1.37016
625+
$1.21792
875+
$1.14181
1,250+
$1.06568
3,125+
$1.03523
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience superior performance with EEV-TG1H102M Aluminum Electrolytic Capacitors from Panasonic Electronic Components. These capacitors are designed to meet the highest industry standards, offering low leakage current, high voltage ratings, and excellent thermal stability. Ideal for medical devices, renewable energy systems, and military applications, EEV-TG1H102M provides the reliability you need. Don't hesitate contact us now for more details and pricing options.
Specifications
- Product Status: Active
- Capacitance: 1000 µF
- Tolerance: ±20%
- Voltage - Rated: 50 V
- ESR (Equivalent Series Resistance): 140mOhm @ 100kHz
- Lifetime @ Temp.: 2000 Hrs @ 125°C
- Operating Temperature: -40°C ~ 125°C
- Polarization: Polar
- Ratings: AEC-Q200
- Applications: Automotive
- Ripple Current @ Low Frequency: 617.5 mA @ 120 Hz
- Ripple Current @ High Frequency: 950 mA @ 100 kHz
- Impedance: -
- Lead Spacing: -
- Size / Dimension: 0.709" Dia (18.00mm)
- Height - Seated (Max): 0.650" (16.50mm)
- Surface Mount Land Size: 0.748" L x 0.748" W (19.00mm x 19.00mm)
- Mounting Type: Surface Mount
- Package / Case: Radial, Can - SMD
