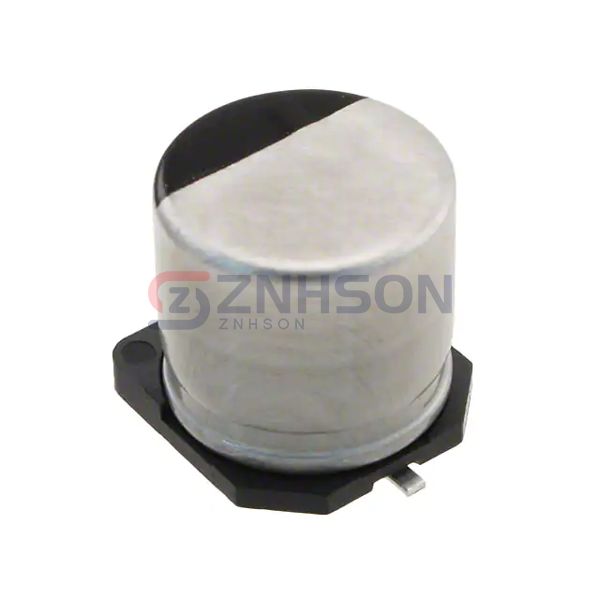

EEE-TP1K681M
Panasonic Electronic Components
Panasonic Electronic Components
CAP ALUM 680UF 20% 80V SMD
$4.02
Available to order
Reference Price (USD)
75+
$2.21333
150+
$1.93660
375+
$1.65997
525+
$1.47552
750+
$1.38331
1,875+
$1.29108
3,750+
$1.25419
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience superior performance with EEE-TP1K681M Aluminum Electrolytic Capacitors from Panasonic Electronic Components. These capacitors are designed to meet the highest industry standards, offering low leakage current, high voltage ratings, and excellent thermal stability. Ideal for medical devices, renewable energy systems, and military applications, EEE-TP1K681M provides the reliability you need. Don't hesitate contact us now for more details and pricing options.
Specifications
- Product Status: Active
- Capacitance: 680 µF
- Tolerance: ±20%
- Voltage - Rated: 80 V
- ESR (Equivalent Series Resistance): 68mOhm @ 100kHz
- Lifetime @ Temp.: 4000 Hrs @ 125°C
- Operating Temperature: -55°C ~ 125°C
- Polarization: Polar
- Ratings: AEC-Q200
- Applications: Automotive, High Temperature Reflow
- Ripple Current @ Low Frequency: 1.95 A @ 120 Hz
- Ripple Current @ High Frequency: 2.6 A @ 100 kHz
- Impedance: -
- Lead Spacing: -
- Size / Dimension: 0.709" Dia (18.00mm)
- Height - Seated (Max): 0.866" (22.00mm)
- Surface Mount Land Size: 0.748" L x 0.748" W (19.00mm x 19.00mm)
- Mounting Type: Surface Mount
- Package / Case: Radial, Can - SMD
