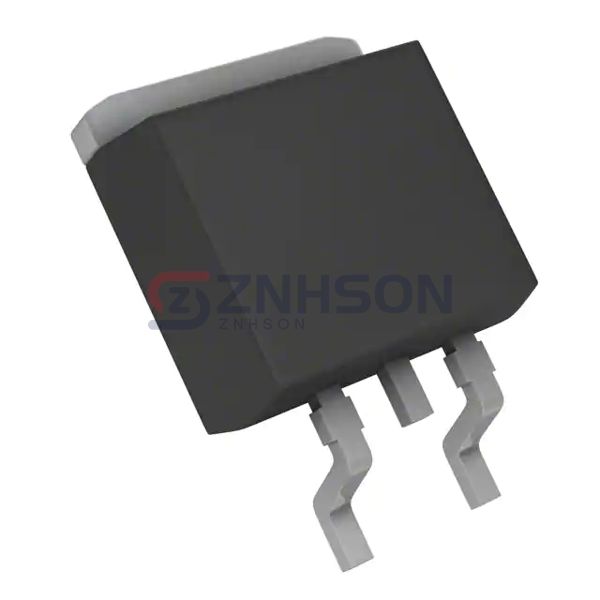

ED503S_L2_00001
Panjit International Inc.
Panjit International Inc.
SUPERFAST RECOVERY RECTIFIERS
$0.81
Available to order
Reference Price (USD)
1+
$0.81000
500+
$0.8019
1000+
$0.7938
1500+
$0.7857
2000+
$0.7776
2500+
$0.7695
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with Panjit International Inc.'s ED503S_L2_00001 Single Rectifier Diodes, engineered for precision and durability. Perfect for rectification circuits, these diodes offer fast switching, high efficiency, and minimal power loss. Applications span across automotive systems, renewable energy solutions, and telecommunications. Key features include high temperature tolerance, low leakage current, and superior surge protection. Trust Panjit International Inc. for components that meet the highest industry standards. Ready to order? Submit your inquiry now!
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 300 V
- Current - Average Rectified (Io): 5A
- Voltage - Forward (Vf) (Max) @ If: 1.25 V @ 5 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 35 ns
- Current - Reverse Leakage @ Vr: 1 µA @ 300 V
- Capacitance @ Vr, F: -
- Mounting Type: Surface Mount
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
- Supplier Device Package: TO-252
- Operating Temperature - Junction: -55°C ~ 150°C
