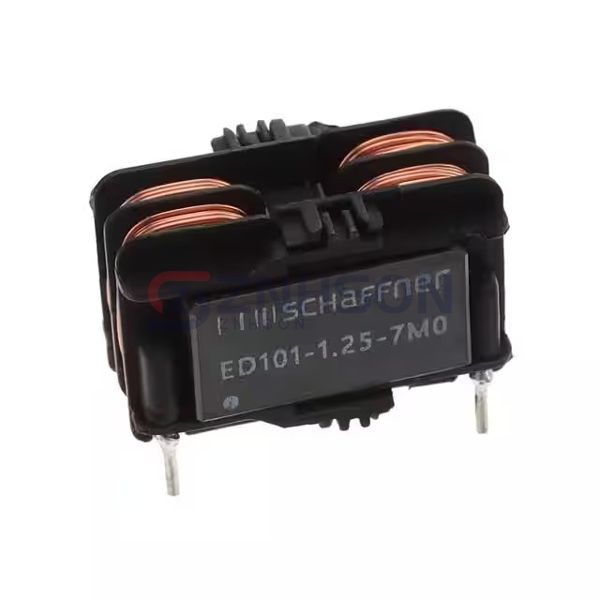

ED101-1.25-7M0
Schaffner EMC Inc.
Schaffner EMC Inc.
COMMON MODE CHOKE
$3.73
Available to order
Reference Price (USD)
1+
$3.73000
500+
$3.6927
1000+
$3.6554
1500+
$3.6181
2000+
$3.5808
2500+
$3.5435
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-quality Schaffner EMC Inc. ED101-1.25-7M0 Common Mode Chokes in our Filters category, designed to suppress electromagnetic interference effectively. These chokes feature excellent noise suppression, high reliability, and compact design, making them ideal for power supplies, data lines, and communication equipment. Perfect for industrial and consumer electronics applications. Interested in this product? Contact us today for a quote!
Specifications
- Product Status: Active
- Filter Type: Power Line
- Number of Lines: 2
- Impedance @ Frequency: -
- Inductance @ Frequency: 7 mH @ 10 kHz
- Current Rating (Max): 1.25A
- DC Resistance (DCR) (Max): 400mOhm (Typ)
- Voltage Rating - DC: -
- Voltage Rating - AC: 300V
- Operating Temperature: -40°C ~ 125°C
- Ratings: -
- Approval Agency: -
- Features: -
- Mounting Type: Through Hole
- Size / Dimension: 0.945" L x 0.563" W (24.00mm x 14.30mm)
- Height (Max): 0.610" (15.50mm)
- Package / Case: Vertical, 4 PC Pin
