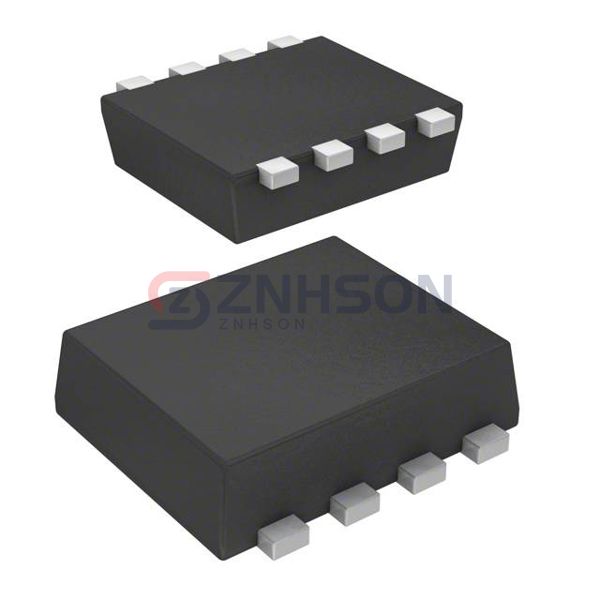

ECH8320-TL-H
Fairchild Semiconductor
Fairchild Semiconductor
MOSFET P-CH 20V 9.5A SOT28FL
$0.36
Available to order
Reference Price (USD)
1+
$0.36000
500+
$0.3564
1000+
$0.3528
1500+
$0.3492
2000+
$0.3456
2500+
$0.342
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience the power of ECH8320-TL-H, a premium Transistors - FETs, MOSFETs - Single from Fairchild Semiconductor. Part of the Discrete Semiconductor Products family, this MOSFET is tailored for high-efficiency power conversion and signal amplification. With its rugged construction and advanced technology, ECH8320-TL-H is suited for harsh environments and high-demand applications. Request a quote now to secure this essential component for your projects!
Specifications
- Product Status: Obsolete
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 9.5A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): -
- Rds On (Max) @ Id, Vgs: 14.5mOhm @ 5A, 4.5V
- Vgs(th) (Max) @ Id: 1.3V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 25 nC @ 4.5 V
- Vgs (Max): ±10V
- Input Capacitance (Ciss) (Max) @ Vds: 2300 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 1.6W (Ta)
- Operating Temperature: 150°C
- Mounting Type: Surface Mount
- Supplier Device Package: SOT-28FL/ECH8
- Package / Case: 8-SMD, Flat Lead
