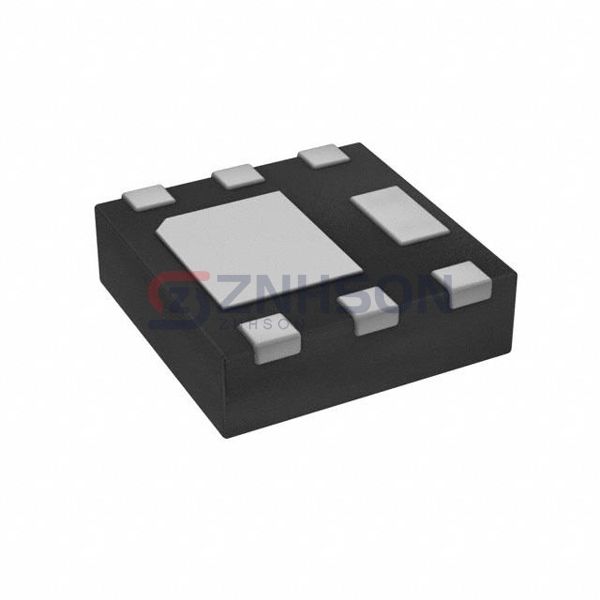

DMN3021LFDF-7
Diodes Incorporated
Diodes Incorporated
MOSFET N-CH 30V 11.8A 6UDFN
$0.55
Available to order
Reference Price (USD)
1+
$0.55000
500+
$0.5445
1000+
$0.539
1500+
$0.5335
2000+
$0.528
2500+
$0.5225
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For cutting-edge Transistors - FETs, MOSFETs - Single solutions, choose DMN3021LFDF-7 by Diodes Incorporated. A key player in Discrete Semiconductor Products, this MOSFET boasts low RDS(on), high current capacity, and excellent switching characteristics. Its applications span across telecom infrastructure, medical devices, and consumer electronics. Elevate your designs with DMN3021LFDF-7 inquire now for more details!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 11.8A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 15mOhm @ 7A, 10V
- Vgs(th) (Max) @ Id: 2.2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 14 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 706 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 2.03W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: U-DFN2020-6 (Type F)
- Package / Case: 6-UDFN Exposed Pad
