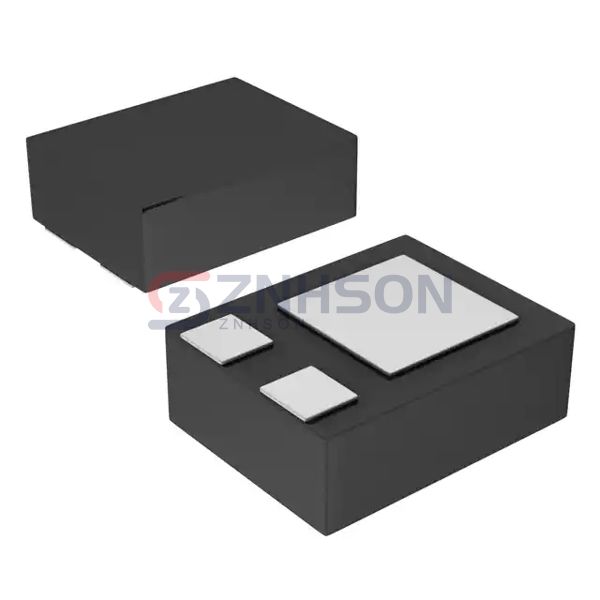

DMN2501UFB4-7
Diodes Incorporated
Diodes Incorporated
MOSFET N-CH 20V 1A X2-DFN1006-3
$0.10
Available to order
Reference Price (USD)
3,000+
$0.10900
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover DMN2501UFB4-7, a versatile Transistors - FETs, MOSFETs - Single solution from Diodes Incorporated, a trusted name in Discrete Semiconductor Products. This MOSFET combines high power density with low on-resistance, perfect for compact and energy-efficient designs. Applications include solar inverters, electric vehicles, and wearable technology. Interested in this innovative component? Send us your inquiry now for more information!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 1A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.8V, 4.5V
- Rds On (Max) @ Id, Vgs: 400mOhm @ 600mA, 4.5V
- Vgs(th) (Max) @ Id: 1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 2 nC @ 10 V
- Vgs (Max): ±8V
- Input Capacitance (Ciss) (Max) @ Vds: 82 pF @ 16 V
- FET Feature: -
- Power Dissipation (Max): 500mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: X2-DFN1006-3
- Package / Case: 3-XFDFN
