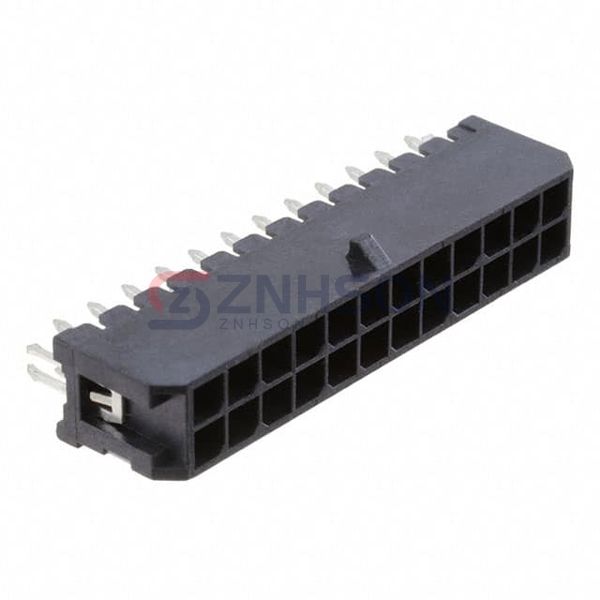

DML-24-A-V-T-A-BL
Adam Tech
Adam Tech
CONN HEADER VERT 24POS 3MM
$2.41
Available to order
Reference Price (USD)
1+
$2.30000
10+
$2.08300
100+
$1.78500
500+
$1.48750
1,000+
$1.27500
5,000+
$1.13050
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DML-24-A-V-T-A-BL Adam Tech Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.118" (3.00mm)
- Number of Positions: 24
- Number of Rows: 2
- Row Spacing - Mating: 0.118" (3.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: -
- Insulation Height: 0.390" (9.91mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Thermoplastic
- Features: Board Lock
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 250VAC
Related Products
3M
2550-5002UB
Harwin Inc.
M22-2010205
Samtec Inc.
TMM-115-04-S-D
Sullins Connector Solutions
SMH101-LPSE-D36-SP-BK
TE Connectivity AMP Connectors
3-794635-6
Samtec Inc.
TSW-109-23-G-D
Amphenol ICC (FCI)

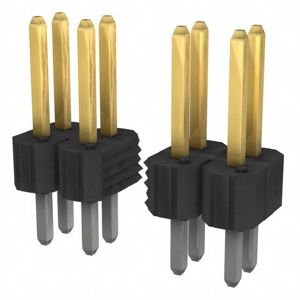

67997-164HLF
Samtec Inc.

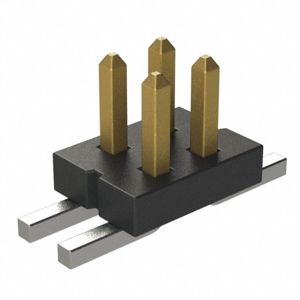

FTS-102-02-S-DV-TR
Samtec Inc.

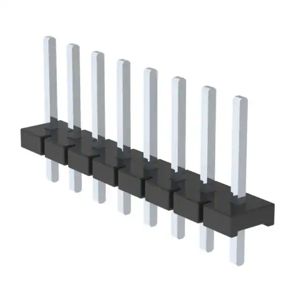

HPM-08-01-T-S
