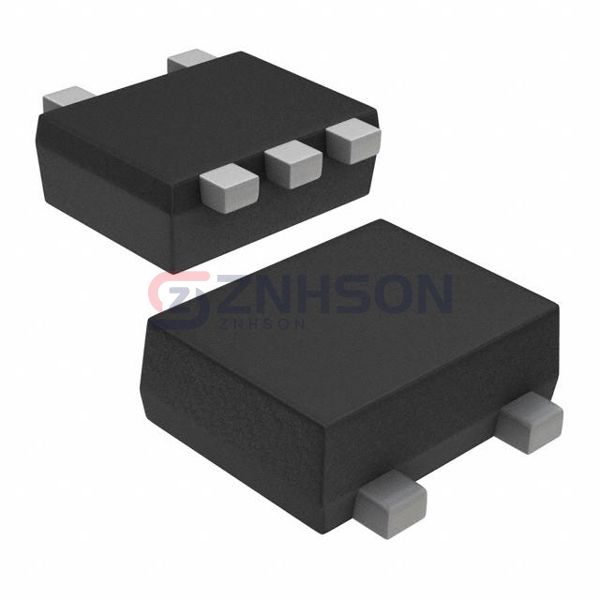

DMG963H10R
Panasonic Electronic Components
Panasonic Electronic Components
TRANS PREBIAS NPN/PNP SSMINI5
$0.00
Available to order
Reference Price (USD)
8,000+
$0.24517
16,000+
$0.23040
24,000+
$0.22793
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade to Panasonic Electronic Components's premium DMG963H10R BJT Arrays for unmatched performance in discrete semiconductor applications. These pre-biased transistor pairs deliver consistent results in amplification and switching tasks, featuring optimized base-emitter resistors for immediate circuit integration. Perfect for use in voltage regulators, relay drivers, and signal conditioning circuits within consumer electronics and embedded systems. The product line boasts high power dissipation, wide operating temperature ranges, and moisture-resistant packaging. As an industry leader, Panasonic Electronic Components provides technical documentation and design support for all DMG963H10R applications. Start your order process submit an inquiry to receive customized solutions!
Specifications
- Product Status: Discontinued at Digi-Key
- Transistor Type: 1 NPN, 1 PNP - Pre-Biased (Dual)
- Current - Collector (Ic) (Max): 100mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Resistor - Base (R1): 47kOhms, 4.7kOhms
- Resistor - Emitter Base (R2): 47kOhms, 10kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 80 @ 5mA, 10V / 30 @ 5mA, 10V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 500µA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: -
- Power - Max: 125mW
- Mounting Type: Surface Mount
- Package / Case: SOT-665
- Supplier Device Package: SSMini5-F4-B
