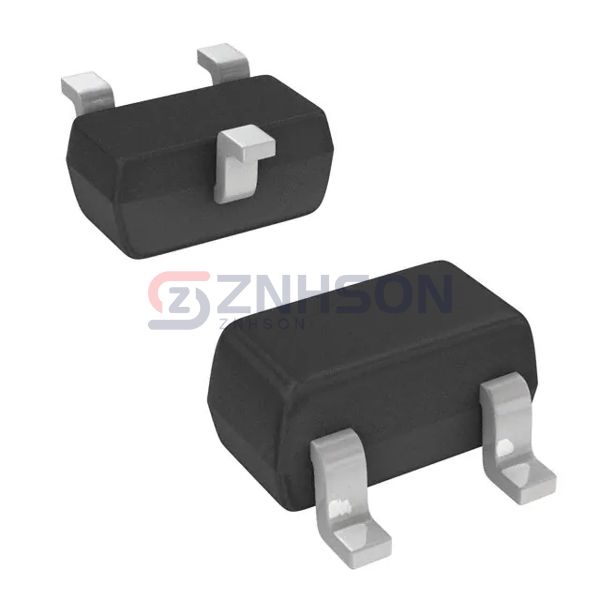

DMG1012T-13
Diodes Incorporated
Diodes Incorporated
MOSFET N-CH 20V 630MA SOT523 T&R
$0.04
Available to order
Reference Price (USD)
1+
$0.04320
500+
$0.042768
1000+
$0.042336
1500+
$0.041904
2000+
$0.041472
2500+
$0.04104
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with DMG1012T-13 by Diodes Incorporated, a top-tier choice in Discrete Semiconductor Products. Specifically crafted for Transistors - FETs, MOSFETs - Single applications, this product offers superior power handling and energy efficiency. Key features include high voltage tolerance, minimal power loss, and robust durability, making it perfect for switching and amplification tasks. Whether for industrial machinery, renewable energy systems, or portable devices, DMG1012T-13 ensures reliable operation. Ready to integrate this component into your project? Submit an inquiry now for pricing and availability!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 630mA (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.8V, 4.5V
- Rds On (Max) @ Id, Vgs: 400mOhm @ 600mA, 4.5V
- Vgs(th) (Max) @ Id: 1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 0.737 nC @ 4.5 V
- Vgs (Max): ±6V
- Input Capacitance (Ciss) (Max) @ Vds: 60.67 pF @ 16 V
- FET Feature: -
- Power Dissipation (Max): 280mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: SOT-523
- Package / Case: SOT-523
