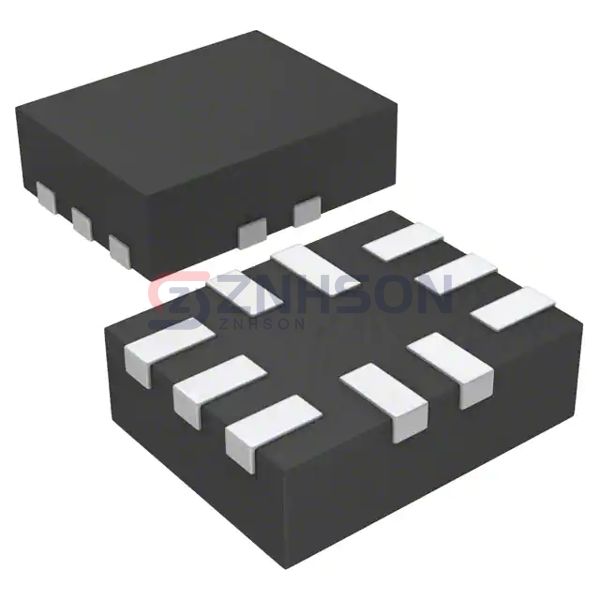

DG2736DN-T1-E4
Vishay Siliconix
Vishay Siliconix
IC SWITCH 2XSPDT 500MOHM MINIQFN
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your system with Vishay Siliconix DG2736DN-T1-E4 Interface ICs, featuring advanced Analog Switches, Multiplexers, and Demultiplexers for superior signal management. Engineered for durability and efficiency, these components are perfect for audio/video equipment, data acquisition, and medical devices. Enjoy minimal distortion and high-speed operation with our cutting-edge technology. Ready to enhance your design? Submit an inquiry now and our team will provide tailored recommendations to meet your specific needs.
Specifications
- Product Status: Obsolete
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 2
- On-State Resistance (Max): 500mOhm
- Channel-to-Channel Matching (ΔRon): 60mOhm
- Voltage - Supply, Single (V+): 1.65V ~ 4.3V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 78ns, 58ns
- -3db Bandwidth: 50MHz
- Charge Injection: -
- Channel Capacitance (CS(off), CD(off)): 55pF
- Current - Leakage (IS(off)) (Max): 2nA
- Crosstalk: -70dB @ 100kHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 10-UFQFN
- Supplier Device Package: 10-miniQFN (1.4x1.8)
Related Products
Vishay Siliconix
DG441LDJ
Alpha & Omega Semiconductor Inc.
AOZ6274QI#A
Analog Devices Inc./Maxim Integrated
DG303ABWE
Analog Devices Inc.
ADG715BRU-REEL
onsemi
MC74LVXT4053MELG
Analog Devices Inc./Maxim Integrated
MAX4711CUE
onsemi
MC74LVXT4066MELG
Renesas Electronics America Inc
ISL84521IB-T
Vishay Siliconix

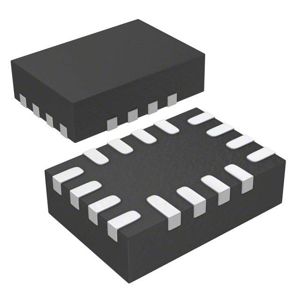

DG2788ADN-T1-E4
