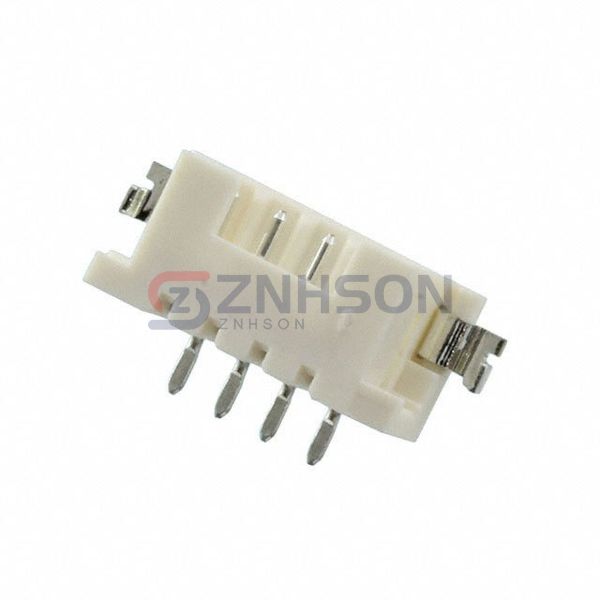

DF3DZ-4P-2H(20)

Specifications

• Product Status: Discontinued at Digi-Key
• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: 0.079" (2.00mm)
• Number of Positions: 4
• Number of Rows: 1
• Row Spacing - Mating: -
• Number of Positions Loaded: All
• Style: Board to Board or Cable
• Shrouding: Shrouded - 4 Wall
• Mounting Type: Surface Mount, Right Angle
• Termination: Solder
• Fastening Type: Push-Pull
• Contact Length - Mating: -
• Contact Length - Post: -
• Overall Contact Length: -
• Insulation Height: 0.220" (5.60mm)
• Contact Shape: Circular
• Contact Finish - Mating: Tin
• Contact Finish Thickness - Mating: -
• Contact Finish - Post: Tin
• Contact Material: Brass
• Insulation Material: Polyamide (PA), Nylon
• Features: -
• Operating Temperature: -55°C ~ 105°C
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Beige
• Current Rating (Amps): 3A
• Voltage Rating: -
