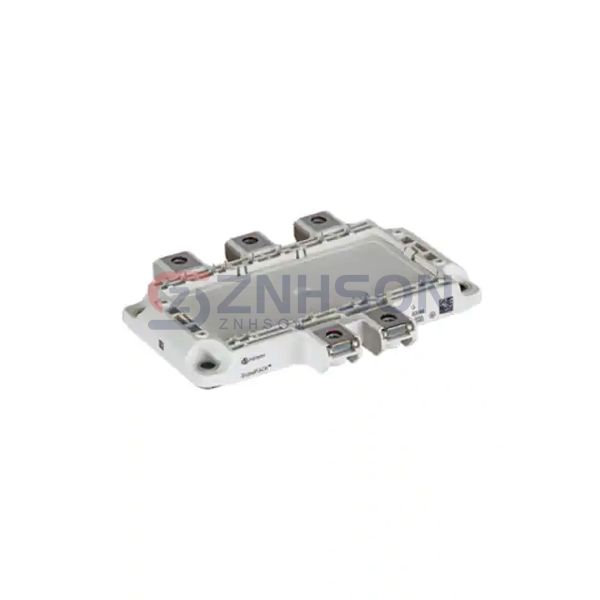

DF200R12PT4B6BOSA1
Infineon Technologies
Infineon Technologies
IGBT MOD 1200V 300A 1100W
$191.67
Available to order
Reference Price (USD)
6+
$184.75833
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DF200R12PT4B6BOSA1 from Infineon Technologies sets the standard in IGBT Modules with its compact design and high power density. Ideal for servo drives and plasma cutting, it combines fast switching with low conduction losses. Partner with Infineon Technologies for top-tier semiconductor solutions. Get in touch for details!
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Configuration: Three Phase Inverter
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 300 A
- Power - Max: 1100 W
- Vce(on) (Max) @ Vge, Ic: 2.1V @ 15V, 200A
- Current - Collector Cutoff (Max): 15 µA
- Input Capacitance (Cies) @ Vce: 12.5 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 150°C
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: Module
