DF1B-14DP-2.5DSA(01)
Hirose Electric Co Ltd
Hirose Electric Co Ltd

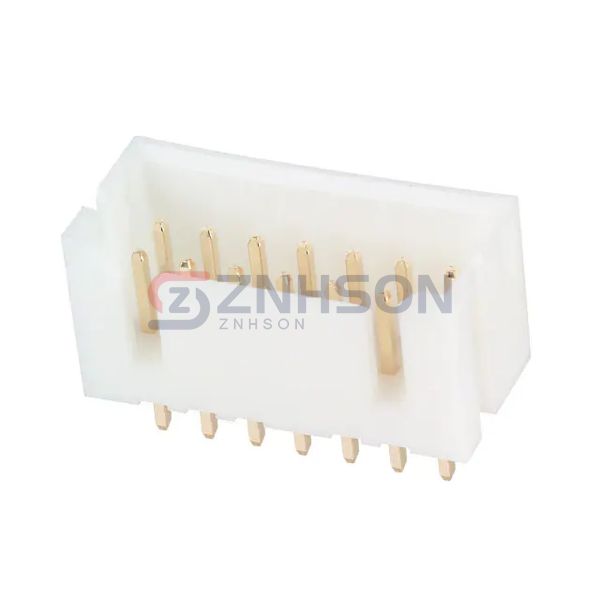

CONN HEADER VERT 14POS 2.5MM
$1.25
Available to order
Reference Price (USD)
1+
$1.04000
10+
$0.91800
100+
$0.79200
500+
$0.64800
1,000+
$0.57600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DF1B-14DP-2.5DSA(01) Hirose Electric Co Ltd Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 14
- Number of Rows: 2
- Row Spacing - Mating: 0.098" (2.50mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.177" (4.50mm)
- Contact Length - Post: 0.142" (3.60mm)
- Overall Contact Length: 0.417" (10.60mm)
- Insulation Height: 0.374" (9.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 8.00µin (0.203µm)
- Contact Finish - Post: -
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: Keying Slot
- Operating Temperature: -35°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: White
- Current Rating (Amps): -
- Voltage Rating: 250V
