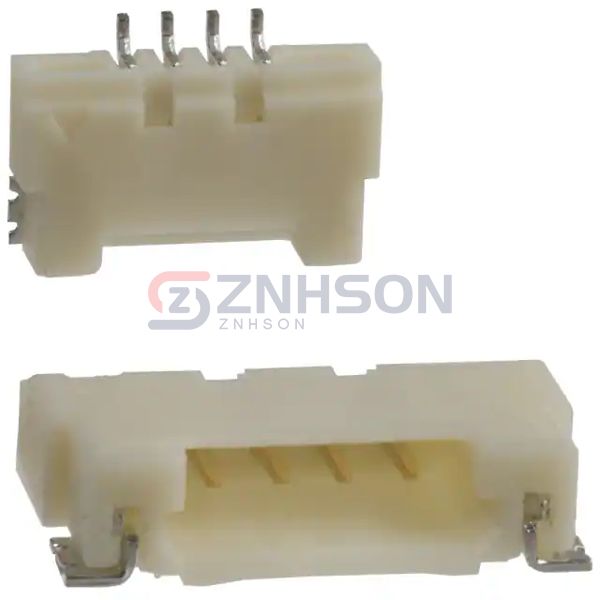

DF14-4P-1.25H(24)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER SMD R/A 4POS 1.25MM
$0.00
Available to order
Reference Price (USD)
1+
$0.96000
10+
$0.84200
25+
$0.79200
50+
$0.75900
100+
$0.72600
250+
$0.66000
500+
$0.59400
1,000+
$0.52800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DF14-4P-1.25H(24) Hirose Electric Co Ltd Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Obsolete
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.049" (1.25mm)
- Number of Positions: 4
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.086" (2.20mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin-Copper
- Contact Finish Thickness - Mating: 39.4µin (1.00µm)
- Contact Finish - Post: Tin-Copper
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: Board Guide, Solder Retention
- Operating Temperature: -35°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Beige
- Current Rating (Amps): 1A
- Voltage Rating: 150VAC
