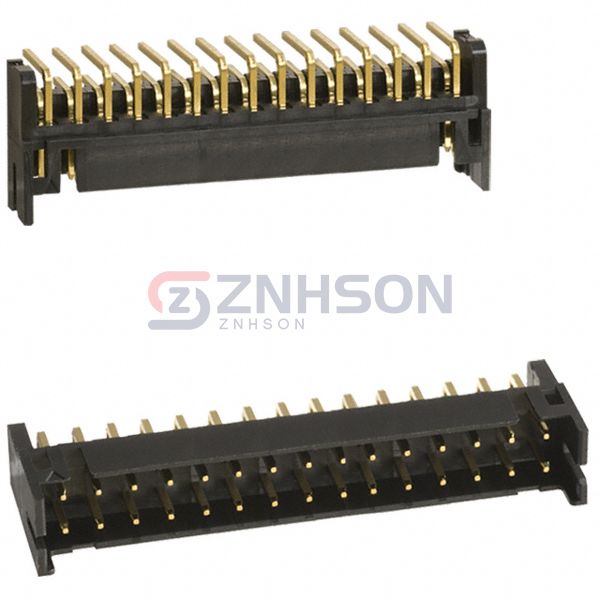

DF11-30DP-2DS(52)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER R/A 30POS 2MM
$3.99
Available to order
Reference Price (USD)
1+
$3.33000
15+
$3.19200
105+
$2.66000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DF11-30DP-2DS(52) Hirose Electric Co Ltd Rectangular Connectors - Headers, Male Pins are the perfect choice for high-performance electronic connections. Designed for durability and efficiency, they support a wide range of applications, from automotive to IoT devices. Experience the Hirose Electric Co Ltd difference today. Contact us for more details and a customized solution!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 30
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.118" (3.00mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.197" (5.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 8.00µin (0.203µm)
- Contact Finish - Post: -
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: -
- Operating Temperature: -40°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2A
- Voltage Rating: 250V
Related Products
Molex
1600136601
JST Sales America Inc.
B12B-ZR(LF)(SN)
Molex
0353621350
Samtec Inc.
TSW-135-06-T-D
Samtec Inc.

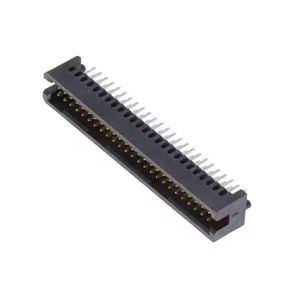

TFML-125-01-S-D-A
Preci-Dip

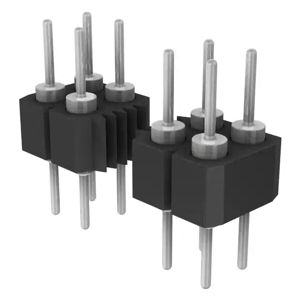

450-80-270-00-013101
Samtec Inc.

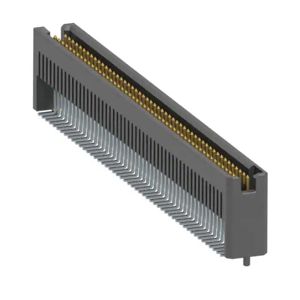

TFM-150-32-S-D-A-P-TR
Samtec Inc.

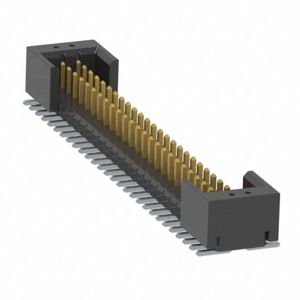

FTM-124-03-F-DV-S
Samtec Inc.

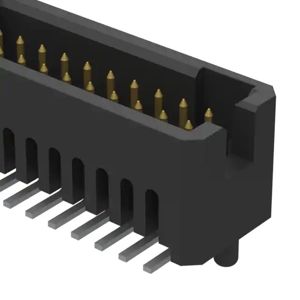

TFC-130-02-LM-D-A-K-TR
