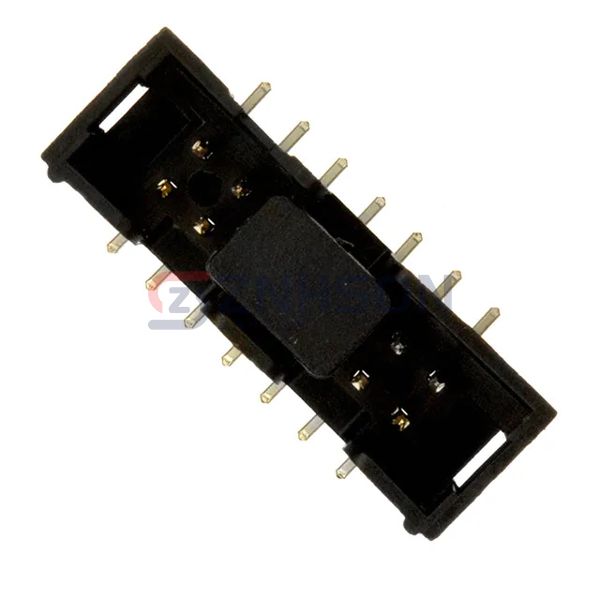

D2514-6V0C-AR-WD

Manufacturer

Description:

CONN HEADER SMD 14POS 2.54MM

Datasheet:

D2514-6V0C-AR-WD Datasheet

$2.43

Available to order

Reference Price (USD)

200+

$1.74720

400+

$1.58080

600+

$1.45600

1,000+

$1.24800

2,000+

$1.20640

5,000+

$1.10656

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The D2514-6V0C-AR-WD 3M Rectangular Connectors - Headers, Male Pins are the perfect choice for high-performance electronic connections. Designed for durability and efficiency, they support a wide range of applications, from automotive to IoT devices. Experience the 3M difference today. Contact us for more details and a customized solution!

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 14
Number of Rows: 2
Row Spacing - Mating: 0.100" (2.54mm)
Number of Positions Loaded: All
Style: Board to Cable/Wire
Shrouding: Shrouded - 4 Wall
Mounting Type: Surface Mount
Termination: Solder
Fastening Type: Push-Pull
Contact Length - Mating: 0.243" (6.17mm)
Contact Length - Post: -
Overall Contact Length: -
Insulation Height: 0.390" (9.91mm)
Contact Shape: Square
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Contact Material: Brass
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features: Keying Slot, Pick and Place
Operating Temperature: -55°C ~ 105°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): 1.75A
Voltage Rating: -
