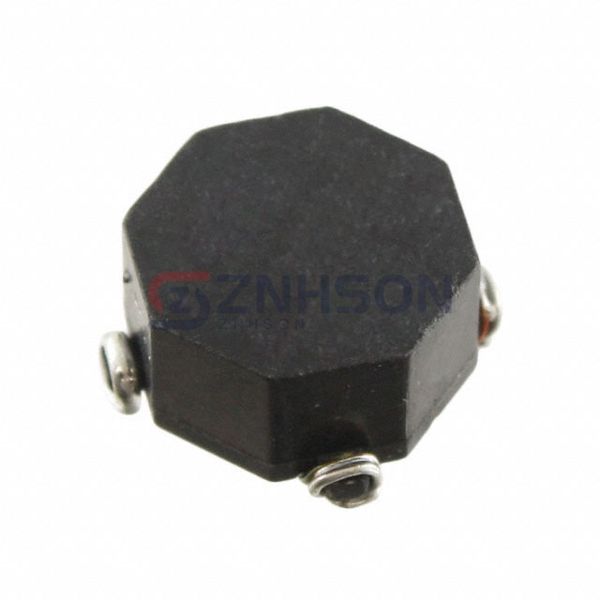

CTX5-4A-R
Eaton - Electronics Division
Eaton - Electronics Division
INDUCT ARRAY 2 COIL 4.26UH SMD
$5.79
Available to order
Reference Price (USD)
1+
$5.79000
500+
$5.7321
1000+
$5.6742
1500+
$5.6163
2000+
$5.5584
2500+
$5.5005
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CTX5-4A-R Eaton - Electronics Division Inductors, Coils, and Chokes are your go-to solution for high-performance Arrays and Signal Transformers. Featuring excellent EMI suppression and wide operating temperature ranges, they are perfect for IoT devices, automotive systems, and industrial automation. Let us help you find the perfect fit for your needs contact us today for expert advice and a detailed proposal!
Specifications
- Product Status: Active
- Number of Coils: 2
- Inductance - Connected In Parallel: 4.26 µH
- Inductance - Connected In Series: 17.05 µH
- Tolerance: ±25%
- Current Rating - Parallel: 7.21 A
- Current Rating - Series: 3.61 A
- Current Saturation - Parallel: 6.43 A
- Current Saturation - Series: 3.21 A
- DC Resistance (DCR) - Parallel: 8.5mOhm Max
- DC Resistance (DCR) - Series: 33.9mOhm Max
- Shielding: Unshielded
- Ratings: -
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Size / Dimension: 0.550" L x 0.550" W (13.97mm x 13.97mm)
- Height: 0.250" (6.35mm)
