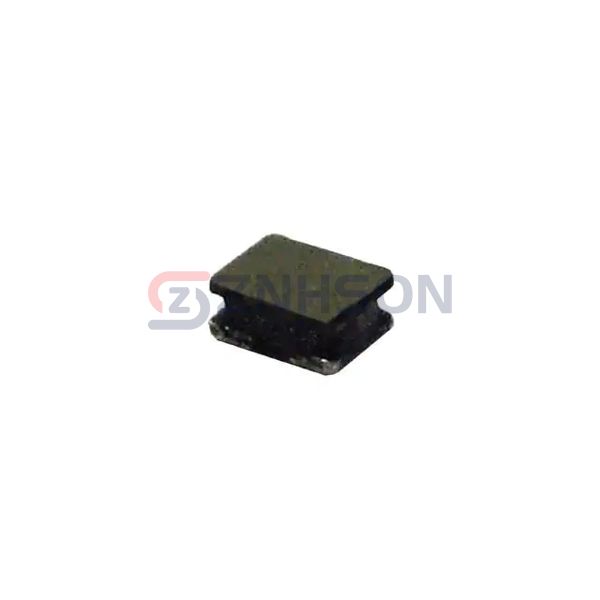

CTLVH3012F-220N
Central Technologies
Central Technologies
SMD SHIELDED POWER INDUCTOR
$0.29
Available to order
Reference Price (USD)
1+
$0.29000
500+
$0.2871
1000+
$0.2842
1500+
$0.2813
2000+
$0.2784
2500+
$0.2755
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your circuit efficiency with CTLVH3012F-220N Fixed Inductors from Central Technologies, a trusted name in electronic components. Designed with high-frequency capabilities, minimal eddy current losses, and excellent shielding, these inductors are perfect for wireless charging, LED lighting, and automation systems. CTLVH3012F-220N ensures peak performance. Looking for tailored solutions? Contact us for expert advice!
Specifications
- Product Status: Active
- Type: Wirewound
- Material - Core: -
- Inductance: 22 µH
- Tolerance: ±30%
- Current Rating (Amps): 700 mA
- Current - Saturation (Isat): 1.2A
- Shielding: Shielded
- DC Resistance (DCR): 795mOhm Max
- Q @ Freq: -
- Frequency - Self Resonant: 7MHz
- Ratings: -
- Operating Temperature: -40°C ~ 125°C
- Inductance Frequency - Test: 1 MHz
- Features: -
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Supplier Device Package: -
- Size / Dimension: 0.118" L x 0.106" W (3.00mm x 2.70mm)
- Height - Seated (Max): 0.047" (1.20mm)
