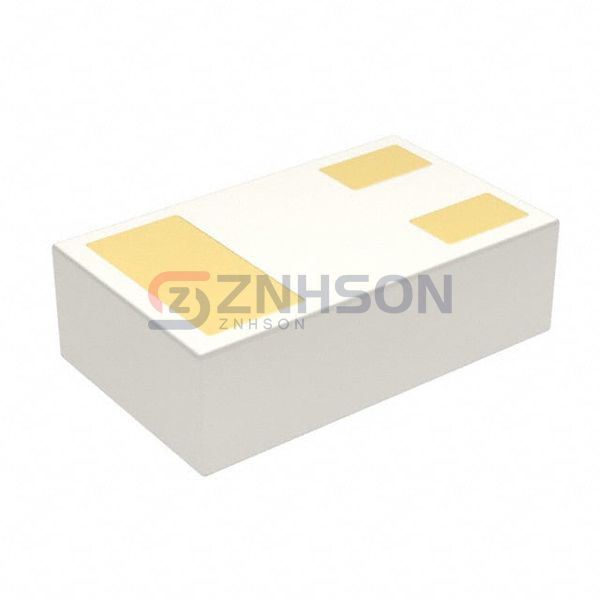

CSD23382F4
Texas Instruments
Texas Instruments
MOSFET P-CH 12V 3.5A 3PICOSTAR
$0.51
Available to order
Reference Price (USD)
1+
$0.51000
500+
$0.5049
1000+
$0.4998
1500+
$0.4947
2000+
$0.4896
2500+
$0.4845
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with CSD23382F4 by Texas Instruments, a top-tier choice in Discrete Semiconductor Products. Specifically crafted for Transistors - FETs, MOSFETs - Single applications, this product offers superior power handling and energy efficiency. Key features include high voltage tolerance, minimal power loss, and robust durability, making it perfect for switching and amplification tasks. Whether for industrial machinery, renewable energy systems, or portable devices, CSD23382F4 ensures reliable operation. Ready to integrate this component into your project? Submit an inquiry now for pricing and availability!
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 12 V
- Current - Continuous Drain (Id) @ 25°C: 3.5A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.8V, 4.5V
- Rds On (Max) @ Id, Vgs: 76mOhm @ 500mA, 4.5V
- Vgs(th) (Max) @ Id: 1.1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 1.35 nC @ 6 V
- Vgs (Max): ±8V
- Input Capacitance (Ciss) (Max) @ Vds: 235 pF @ 6 V
- FET Feature: -
- Power Dissipation (Max): 500mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 3-PICOSTAR
- Package / Case: 3-XFDFN
