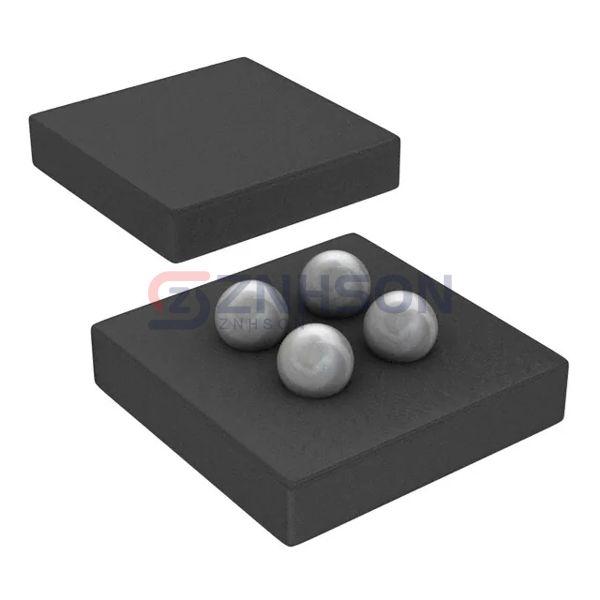

CSD23202W10T
Texas Instruments
Texas Instruments
MOSFET P-CH 12V 2.2A 4DSBGA
$1.05
Available to order
Reference Price (USD)
250+
$0.28092
500+
$0.23850
750+
$0.20671
1,250+
$0.18550
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-performance CSD23202W10T from Texas Instruments, a leading solution in the Discrete Semiconductor Products category. Our Transistors - FETs, MOSFETs - Single are designed for efficiency and reliability, making them ideal for various electronic applications. These components feature low on-resistance, fast switching speeds, and excellent thermal performance, ensuring optimal functionality in power management and amplification circuits. Commonly used in automotive, industrial, and consumer electronics, CSD23202W10T delivers consistent performance under demanding conditions. Interested in learning more? Contact us today for a detailed quote and technical support!
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 12 V
- Current - Continuous Drain (Id) @ 25°C: 2.2A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 53mOhm @ 500mA, 4.5V
- Vgs(th) (Max) @ Id: 900mV @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 3.8 nC @ 4.5 V
- Vgs (Max): -6V
- Input Capacitance (Ciss) (Max) @ Vds: 512 pF @ 6 V
- FET Feature: -
- Power Dissipation (Max): 1W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 4-DSBGA (1x1)
- Package / Case: 4-UFBGA, DSBGA
