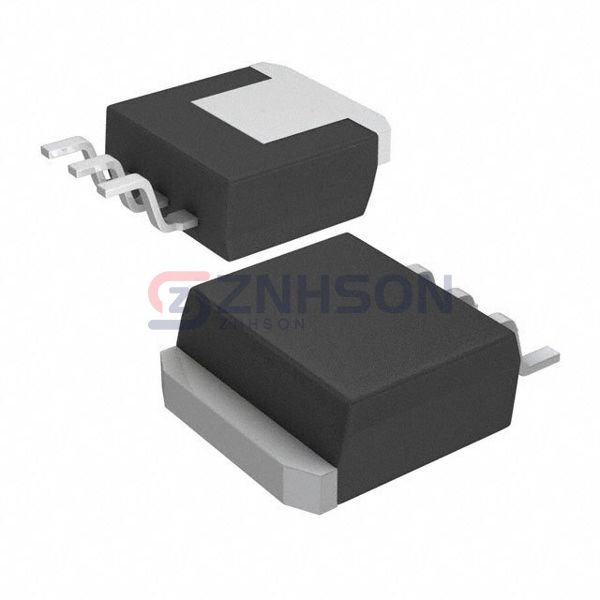

CSD19535KTT
Texas Instruments
Texas Instruments
MOSFET N-CH 100V 200A DDPAK
$3.76
Available to order
Reference Price (USD)
500+
$1.94770
1,000+
$1.65155
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-performance CSD19535KTT from Texas Instruments, a leading solution in the Discrete Semiconductor Products category. Our Transistors - FETs, MOSFETs - Single are designed for efficiency and reliability, making them ideal for various electronic applications. These components feature low on-resistance, fast switching speeds, and excellent thermal performance, ensuring optimal functionality in power management and amplification circuits. Commonly used in automotive, industrial, and consumer electronics, CSD19535KTT delivers consistent performance under demanding conditions. Interested in learning more? Contact us today for a detailed quote and technical support!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 100 V
- Current - Continuous Drain (Id) @ 25°C: 200A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 6V, 10V
- Rds On (Max) @ Id, Vgs: 3.4mOhm @ 100A, 10V
- Vgs(th) (Max) @ Id: 3.4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 98 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 7930 pF @ 50 V
- FET Feature: -
- Power Dissipation (Max): 300W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: DDPAK/TO-263-3
- Package / Case: TO-263-4, D²Pak (3 Leads + Tab), TO-263AA
