CSD16412Q5A
Texas Instruments
Texas Instruments
MOSFET N-CH 25V 14A/52A 8VSON
$0.92
Available to order
Reference Price (USD)
2,500+
$0.36300
5,000+
$0.35090
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience the power of CSD16412Q5A, a premium Transistors - FETs, MOSFETs - Single from Texas Instruments. Part of the Discrete Semiconductor Products family, this MOSFET is tailored for high-efficiency power conversion and signal amplification. With its rugged construction and advanced technology, CSD16412Q5A is suited for harsh environments and high-demand applications. Request a quote now to secure this essential component for your projects!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 25 V
- Current - Continuous Drain (Id) @ 25°C: 14A (Ta), 52A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 11mOhm @ 10A, 10V
- Vgs(th) (Max) @ Id: 2.3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 3.8 nC @ 4.5 V
- Vgs (Max): +16V, -12V
- Input Capacitance (Ciss) (Max) @ Vds: 530 pF @ 12.5 V
- FET Feature: -
- Power Dissipation (Max): 3W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-VSONP (5x6)
- Package / Case: 8-PowerTDFN
Related Products
STMicroelectronics
STD25NF10T4
Rohm Semiconductor

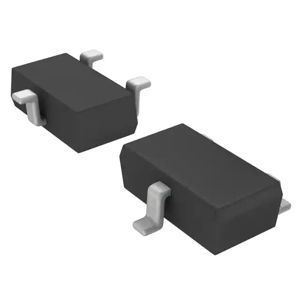

RTR040N03TL
Diodes Incorporated

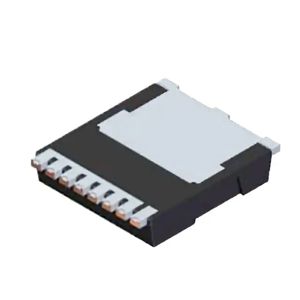

DMTH8001STLW-13
Rohm Semiconductor

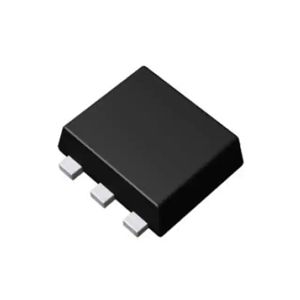

RW1C026ZPT2CR
Infineon Technologies

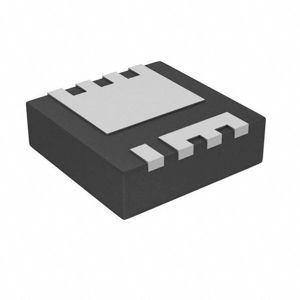

BSZ0904NSIATMA1
Wolfspeed, Inc.

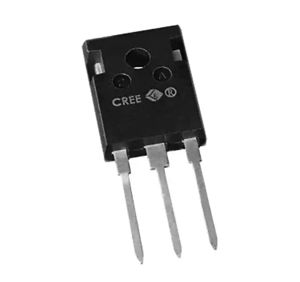

C3M0350120D
Texas Instruments

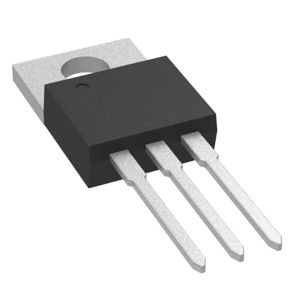

CSD18504KCS
PN Junction Semiconductor

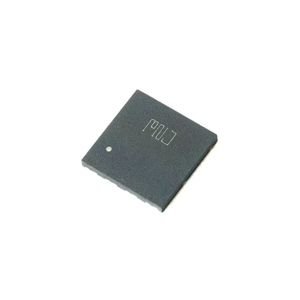

P3M06300D8
