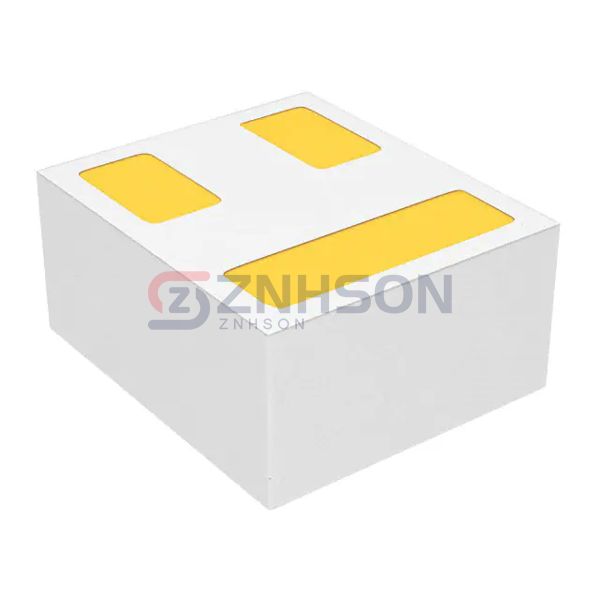

CSD15380F3
Texas Instruments
Texas Instruments
MOSFET N-CH 20V 500MA 3PICOSTAR
$0.47
Available to order
Reference Price (USD)
3,000+
$0.08200
6,000+
$0.07400
15,000+
$0.06600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For cutting-edge Transistors - FETs, MOSFETs - Single solutions, choose CSD15380F3 by Texas Instruments. A key player in Discrete Semiconductor Products, this MOSFET boasts low RDS(on), high current capacity, and excellent switching characteristics. Its applications span across telecom infrastructure, medical devices, and consumer electronics. Elevate your designs with CSD15380F3 inquire now for more details!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 500mA (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 2.8V, 8V
- Rds On (Max) @ Id, Vgs: 1190mOhm @ 100mA, 8V
- Vgs(th) (Max) @ Id: 1.35V @ 2.5µA
- Gate Charge (Qg) (Max) @ Vgs: 0.281 nC @ 10 V
- Vgs (Max): 10V
- Input Capacitance (Ciss) (Max) @ Vds: 10.5 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 500mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 3-PICOSTAR
- Package / Case: 3-XFDFN
