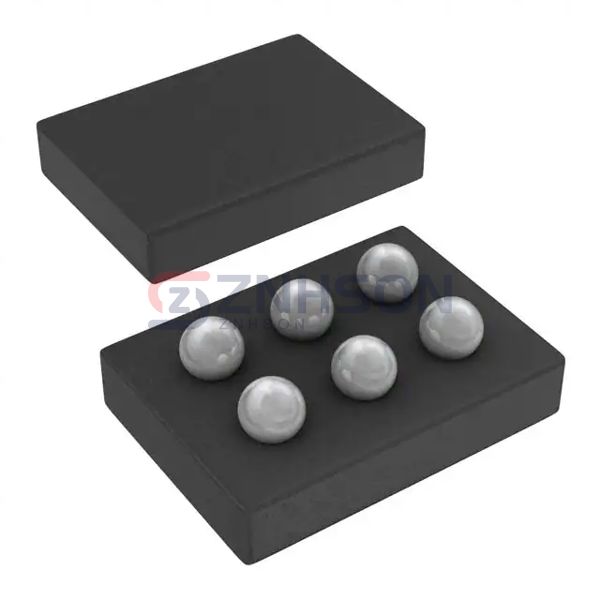

CSD13306W
Texas Instruments
Texas Instruments
MOSFET N-CH 12V 3.5A 6DSBGA
$0.56
Available to order
Reference Price (USD)
3,000+
$0.19040
6,000+
$0.17850
15,000+
$0.17255
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Texas Instruments presents CSD13306W, a high-performance Transistors - FETs, MOSFETs - Single in the Discrete Semiconductor Products category. Designed for efficiency, this component features minimal conduction losses and superior thermal performance, making it ideal for high-frequency applications. From industrial automation to smart home devices, CSD13306W delivers unmatched reliability. Get in touch today for technical specifications and purchasing options!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 12 V
- Current - Continuous Drain (Id) @ 25°C: 3.5A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 10.2mOhm @ 1.5A, 4.5V
- Vgs(th) (Max) @ Id: 1.3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 11.2 nC @ 4.5 V
- Vgs (Max): ±10V
- Input Capacitance (Ciss) (Max) @ Vds: 1370 pF @ 6 V
- FET Feature: -
- Power Dissipation (Max): 1.9W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 6-DSBGA (1x1.5)
- Package / Case: 6-UFBGA, DSBGA
